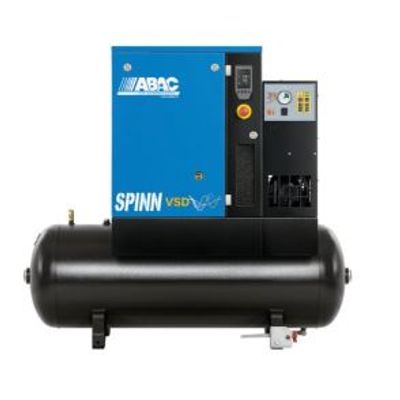

ABAC - Model SPINN5,5E I 10 400/50 200 SA - Air Compressor
The SPINN5,5E I 10 400/50 200 SA is an air compressor designed for applications requiring consistent and controlled air flow. It features a maximum working pressure of 10 bar and a vessel size of 200 liters, making it suitable for various industrial settings. This model is configured as a full-feature unit, offering comprehensive functionality in a compact design. Its Free Air Delivery (FAD) capacity ranges from 336 to 756 liters per minute, catered to different operational demands. The compressor is powered by a 5.6 kW motor, ensuring efficient performance. Noise levels are regulated for reduced operational disturbances. The product details and technical specifications are carefully crafted to meet industrial standards, while images provided may differ slightly from the actual product.Most popular related searches
- Max Working Pressure (bar) : 10
- Vessel size (lt) : 200
- Configuration : Full Feature
- FAD Capacity Min (l/min) : 336
- FAD Capacity Max (l/min) : 756
- Motor (kw) : 5.6
- Noise Level :
Specification: Value
Weight: 202000 g
Specification: Value
EAN Code: n.a.
Min Working Pressure (bar): 4 Bar
Min Working Pressure (psi): 58 PSI
Max Working Pressure (psi): 145 PSI
Max Working Pressure (bar): 10 Bar
Vessel size (lt): 200 Liter
Vessel size (gal): 53 Gal
Configuration: Full Feature
FAD Capacity Min (cfm): 11.8 Cfm
FAD Capacity Min (l/min): 336 l/min
FAD Capacity Max (l/min): 756 l/min
FAD Capacity Max (cfm): 26.6 Cfm
Pump element: C43
Noise level: 61 dB(A)
Motor (hp): 7.5 Hp
Motor (kw): 5.6 kW
Supply voltage: 400 V
Frequency: 50 Hz
Number of phases: 3
Air connector: 1/2
Oil capacity: 3.2 Liter
Length: 1430 mm
Height: 1285 mm
