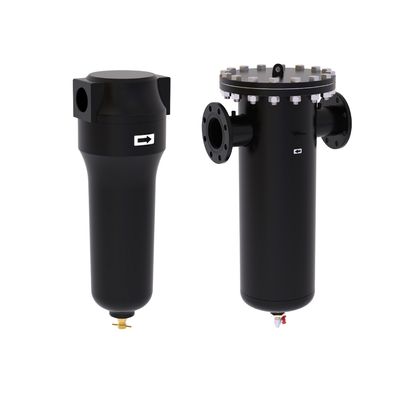

OMI - Air Compressor Heavy Duty Filter

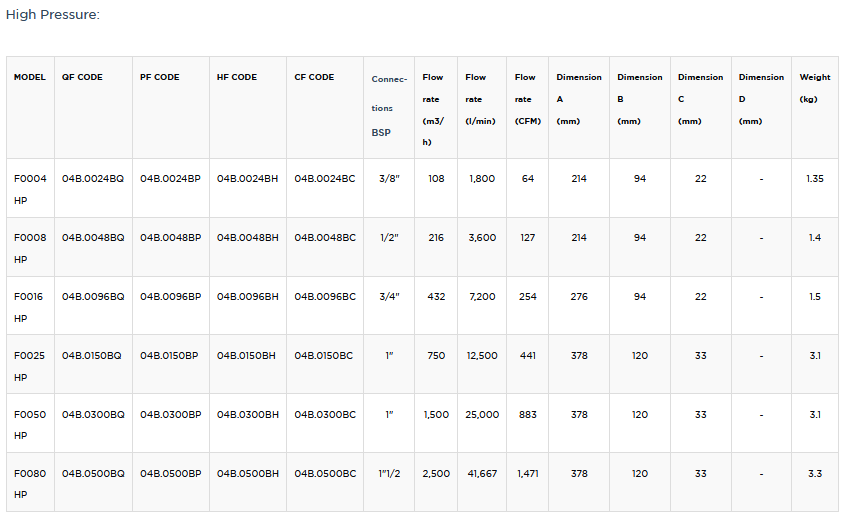

HP - High pressure (up to 45 bar) - The strong mechanical resistance makes these filters the ideal initial protection of an high pressure compressed air system to retain impurities and they are also suitable as a post-filter for adsorption dryers.
Most popular related searches
Air flow rate from 34m³/h to 31000 m³/h
STANDARD CONDITIONS:
For special applications OMI has two series of heavy duty filters:
- HT/HDT - High temperature (up to 150°C) - Sharing the same principles of mechanical resistance of HDP series, this high temperature filters can operate at 150°C inlet air, even 205°C in case of intermittent operation. They can be safely used as post-filters for heated blower adsorption dryers.
All filters are available with the following filtration grades:
- PF: Interception type filters suitable for solid and oil particles up to 0,1 micron and 0,1 mg/m³.
- HF: Interception type filters suitable for solid and oil particles up to 0,01 micron and 0,01 mg/m³.
- QF: Pre-filter suitable for the removal of solid particles down to 1 micron including liquids, emulsions and oil particles.
- *CF: There are treatments in industrial plants which in addition to oil free air, require the elimination of oil vapors and odor.
*CF filters are only available on HDP series because the material of which the filter elements are made does not withstand high temperatures.
