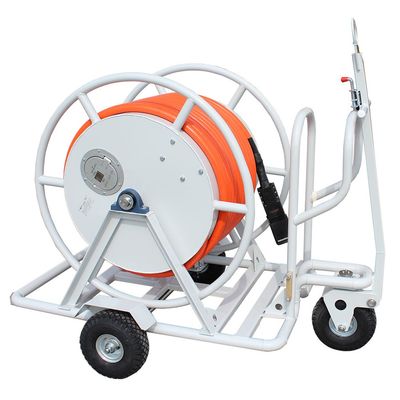

Estel - Model CW1 -Airfield Cable Winding Device
Cable winding device CW is intended for the compact storage as well as for the winding and unwinding of power supply cable. Cable winding device CW is a mobile hand-guided unit to supply aircraft with 400 Hz power cable during ground handling. Possibility of modification in accordance with the Customer’s need.
Most popular related searches
- 4 fixation positions
- Extended cable life, no ware of cable
- Towing arm
- Automatic brakes
- Safe cable storage
- The cable drum is hand-activated
- Solid rubber wheels
- Easy operational
- Designed to comply with RoHS and REACH requirements
- Weight, kg: 150
- Overall dimensions, ??: 1800 ? 1600 ? 1150
- Drum diameter, ??: 1000
- Wheels diameter, ??: 420
- Cable diameter, ??: 52
- Voltage, ?: 208
- Cable length, ?: 10 — 50
- Number of wheels: 3
- Interlock option, 90% switch: yes
- Output switch: yes
- Output switches: 400 HZ ? 28 V: yes
