Airoflex - Low Profile Portable Trailer Tipper

FromAiroflex Equipment

SHARE

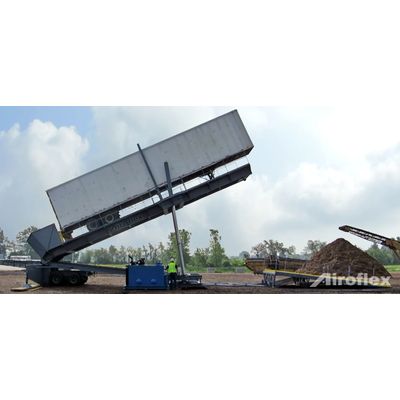

The Airoflex Low Profile Portable Trailer Tipper Is Designed For Easy Over-The-Road Transportation. Airoflex Equipment designs and engineers a 45-ton low profile portable tipper. Engineered with a rugged design, this portable tipper can tackle the most challenging applications with a 10’ x 45’ platform, 45 ton lifting capacity, 63-degree tilt and a 3 minute up-cycle time. Designed for simple off-highway movement, it can readily be prepped for over-the-road transport. An electric hydraulic power unit comes with the standard system or a diesel power unit is also available. Other options include heated/cooled operator booth, hydraulic leveling capabilities, and 3-axle transports.

Most popular related searches

hydraulic power unit

diesel power unit

heating and cooling

electrical power

The tippers are fully portable with no foundation required, meaning they are easy to relocate. They feature walkways and handrails on both sides, 2 Hyco, 4-stage cylinders, 3/8″ 4-way safety plate steel decks, a ramp with walkways and handrails, a fixed backstop, surface preparation to SSPC – SP6, and are finished with rust inhibitive primer and industrial enamel.

Portable tippers have a capacity of 45 tons and a deck size of 10’ wide x 45′ long. Each model includes 9’2″ inside rails for safety and stability. The typical raise time is 3 minutes, the lower time is 1 minute, and the tilt angle is 63 degrees. They have an electric power unit, a 300-gallon tank, and a NEMA 4x push button control panel.

Options for the portable trailer tipper include a hydraulically adjustable backstop, HPU heaters and coolers, customer specified coatings, 100 HP diesel tier 4 HPU, hydraulic leveling, heated and cooled operator booth, and 3 axle transport.
