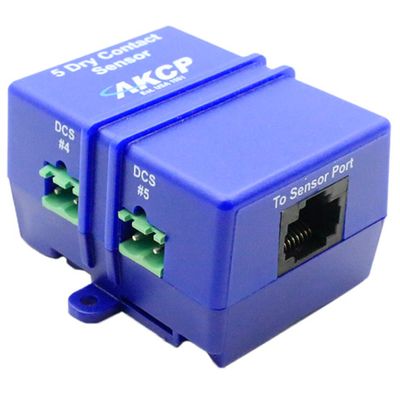

AKCP - Model 5DCS - 5 Dry Contact Inputs (SP2 / SP2+ Only)
These dry contact ports can be used to monitor any dry contact inputs through an RJ45 sensor port. Have up to 10 dry contacts on an SP2 and 20 on an SP2+. The sensor requires the 10 dry contact unlock license for the SP2. On the SP2+ 5 dry contact licenses are sold on a per-port basis. The dry contacts on the 5DCS are input only, if you require I/O on a sensor port, use the single dry contact cable (DCS15).
Measurement Range: Alarm or Normal
Sensor Type: Open / Closed contact switch (input only)
Contact voltage range: 5 volts pulled-up dry contacts*
Measurement Rate: Multiple readings every second: Normal input state is settable under software
Interface:
Communications Cable: RJ-45 jack to sensor using UTP Cat 5 wire
Communications Cable Max. length: 1000 Ft (305m) with approved low capacitance shielded cable or UTP
Power Source: Powered by the controller unit. No additional power needed
Dimensions: 56 x 55 x 33.3 mm
Mounting: DIN rail mounting
Screw mounting:
Up to 5 dry contact inputs per RJ-45
– making up to 10 Dry Contact Inputs in sensorProbe2
– making up to 20 Dry Contact Inputs in sensorProbe2+
Important Note: Dry Contacts are not isolated, don’t connect any voltage source
Sensor count: 5
