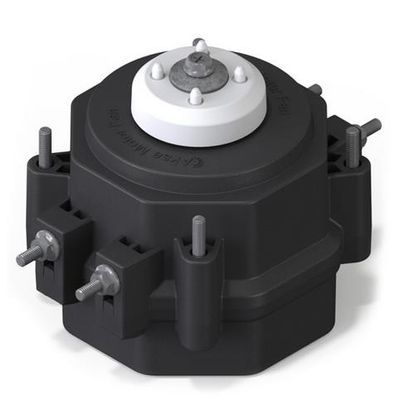

Aksa Motor - Model ACT 788.0815 -EC Motor
FromAksa Motor Fan
High energy efficiency is achieved thanks to EC Motor technology. Easy electrical connection is provided with a plug-in cable with a high IP level. It can be used in all propeller diameters (ø154mm ~ ø254mm) with 3 different power types of motors.
Most popular related searches
low voltage equipment
electromagnetic compatibility
energy efficiency
heating and cooling
industrial heat
industrial heating
- Roller bearings provide maintenance-free, silent and long-lasting performance.
- Our engine is designed to work in the desired position.
- Our engine is included in the Class-II protection class.
- The motor has IP67 protection class and H insulation class.
- Special production is made for our customers with the desired technical specifications.
- Our products are manufactured in accordance with EN 60335-2-80, Low Voltage Equipment [2014/35/EU] and Electromagnetic Compatibility [2014/30/EU] standards.
- Suitable for use in all industrial applications for heating or cooling purposes.
USE OPTIONS
- Constant Speed Control
- Constant Power Control
- Working in the opposite direction during take-off
- Working in the opposite direction when requested
- 2 Stage Speed
- Speed Control with PWM
- Electrical Connection Options: 230VAC, 110VAC, 24VDC
- Transfer Options: 1300 / 1400 / 1550 / 1800 Rpm
- Instantaneous Inrush Current: < 20A (min. 1 hour off)
- Insulation Class: Cl.H
- Overload Protection: Electronic Protection (Hardware and Software)
- Min. / Max. Ambient Temperature: -40°C ~ +60°C
- Maximum Humidity: 85%
- Protection Class: Class II
- IP Rating: IP67
- Certification & Compliance: CE & VDE (In the application phase)
