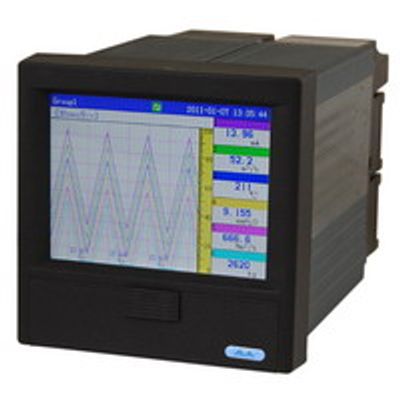

ALIA - Model ARC900 -ALIA Paperless Recorder with 16 Channels ARC900
FromAlia Group INC
ARC900 Series Paperless Recorder used the most Advanced technology, to be aimed to various industry application.
ARC900 is the product which with multi-channels, complete functions, easy operation, high accuracy,low power but high performance.And the series overcomes the old-fashioned paperless recorder, which has less channels, multiple installation and space-consuming problem.
FEATURES
DIN Size(144mm*144mm), 320*240Pixels,TFT truecolor(LCD)
128MB memory installed inside, applied to long terms data record
Common input signal, mA, Include VDC, T/C, RTD,Hz..etc
High Accuracy +/-0.15% of Reading
Maximum to 12 points Relay, 4 point 4-20mA output and 24VDC output
Maximum can receive 16 channels input signal
Could selected 24VDC Aux. Power supply for 2 wires system
It can Display/Record single point,Multi-point,Trend,Totalizer,Bargraph
The recorded data could be stored in USB memory & SD memory card and take out to computer make soft analysis
SPECIFICATION
Number
