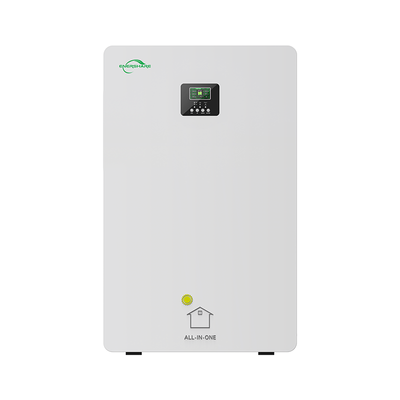

Enershare - Model ES S5k200 - All-in-One 40kW Home Solar Battery Storage System
The All-in-One 40kW Home Solar Battery Storage System by Enershare is engineered for residential energy storage solutions, integrating multiple advanced technologies. This system features a Plug and Play 5kW10kWh configuration for straightforward installation and operational efficiency. The Auto ID system automatically assigns any host, streamlining connectivity and communication across the grid. A Smart Temperature Control mechanism ensures optimal performance by maintaining the battery at ideal operating temperatures. The implementation of Smart Parallel technology enhances compatibility and support for parallel expansion, making it adaptable for varied energy demands. Designed for both on-grid and off-grid applications, this lithium iron phosphate (LiFePO4) battery system provides stable, long-lasting power. The system's versatility makes it suitable for homeowners seeking reliable energy storage solutions capable of supporting comprehensive solar power needs.
5Kw/10KWh - 40KWh All in One home solar battery storage system
- Auto ID
- Automatically assign any host
- Smart Temperature Control
- Smart parallel technology compatible with batteries with dierent SOC and voltages
- Eciency with up to 90% usable energy
- IP20 Protection Rating
- Modular designer, natural cooling, indoor use
- Supports up to 16 units in parallel, with a total capacity of up to 40 kWh
- Intelligent temperature control guarantees battery safety and longevity
- Cycle life exceeds 6000cycles for long-lasting reliability.
AC Input/Output Parameters
- Ac Input voltage : AC 230 V
- Optional Voltage : 170-280V AC(Personal Computer)
- Optional Voltage : 90-280v AC(Home Load)
- Frequency Range : 50Hz/60Hz (Auto Sensing)
- Max AC Charge Current : 60A @DC 57.6V
- AC Output Voltage : 230V AC ±5%
- Eciency (Peak) : Upto 93.5%
- Transfer Time : 10ms (Personal Computer); 20ms (Home Load)
- Nominal Power : 10000 W (or VA)
- Waveform : Pure Sine Wave
- PV Voltage Range : 120V-450V DC
- Max. PV Open Circuit Voltage : 500V DC
- Max. Solar Charge Current : 100A @ 57.6 DC
- Max. PV Array power : 6000W
Battery Parameters
- Battery Type : Lithium iron phosphate
- Normal Voltage : 51.2V
- Normal Capacity : 10.24kWh
- Useable Capacity : 10kWh
- Operating Voltage : 48~57.6V
- Rated Charging current : 50A
- Max Charging Current : 100A
- Recycle Time : 6000 (@25C, DoD 90%)
Enviorment Requirments
- Humidity : 5% to 90% Relative Humidity
- Battery Recycle TIme : 6000 (@25C, DoD 90%)
- Operating Temprature : -10°C to 50°C
- Storage Temrature : -10°C to 60°C
- Warranty : 5 Years
