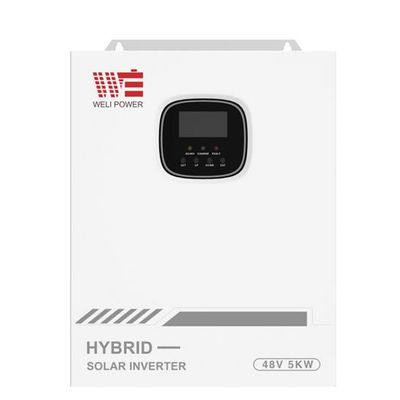

Welink - Model HSI 5500P - All-in-One Solar Charge Hybrid Inverter
Performance characteristics: Load friendly: Stable sine wave AC output via SPWM modulation. Supports a wide range of battery technology: GEL, AGM, Flooded, LFP, and program. Dual LFP battery activation method: PV & mains.
Most popular related searches
hybrid inverter
energy efficiency
battery system
electrical system
solar charge
inverter
solar hybrid inverter
solar hybrid
hybrid solar inverter
solar inverter
- Model Name: HSI 5500P
- Rated Output Power: 5500VA
- Rated Voltage: 48V
- PV: 500V
- AC: 220/230V
- Energy Efficiency: Up to 99.9% MPPT capture efficiency
- Dimensions: 426mm*322mm*126mm
- Weight (KG): 10.5
- Uninterrupted power supply: simultaneous connection to utility grid/generator and PV .
- Intelligent programming: the priority of the output from different energy sources can be set.
- High energy efficiency: up to 99.9% MPPT capture efficiency.
- Instant viewing of operation: the LCD panel displays data and settings ,while you can also be viewed using the app and webpage.
- Power saving: power saving mode automatically reduces power consumption at zero-load.
- Efficient heat dissipation: via intelligent adjustable speed fans
- Multiple safety protection functions: short circuit protection, overload protection, reverse olarity protection, and so on.
- under-voltage and over-voltage protection and reverse polarity protection.
- Supports up to 6 devices of the same model connected in parallel
- (forming a single-phase,split-phase,three-phase electrical system)
