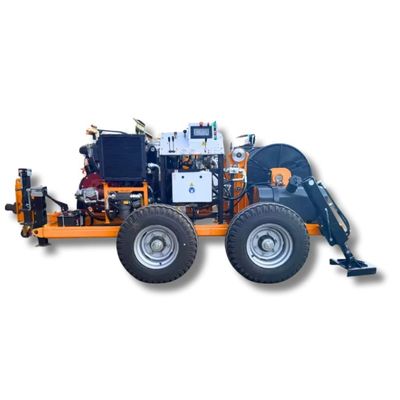

Allame CP - Model HCPM10 -Cable Pulling Winch 10 Ton

The windlass is double capstan type with a pulling capacity of 100 kN and speed of 30 m/min. The hydraulic drive system provides constant tension and steady operation over extended time periods.

The water-cooled diesel engine delivers 38.5KW (51.7 HP) power output that is designed to run continuously. Pulling force, speed and length are shown in real time on the built-in electronic display. Job reporting is done with the built in thermal printer that reports both distance and tonnage.

This model has a 1000m of steel rope (Ø16mm) and is attached to an automatic winder fixed directly to the seat. Safety-wise, an emergency stop button, full metal cover and hydraulic pressure gauge provides for excellent regulation.

Sturdy support comes from 4 wheel adjustable stabilizers and a durable frame constructed with hand and overrun brakes. The machine is road towable up to 70 km/h.

Designed to withstand everyday use and built tough for long service life; certified with international standards that ensure programs are used the way they were intended basing on conditions where, how and by whom the product is used.

• Purchase Number : HCPM10
• Pulling Force : 100 kN
• Rope Length : 500 m
• Rope Diameter : 16 mm
• Cable Pulling Speed : 30 m/min
• Driving Unit : Hydraulic
• Engine : Diesel
• Engine Power : 85 kW
• Engine Cooling : Water Cooled
• Chassis : Double Axle
• Brake System : Hand Brake ( optional air brake)
• Enclosure : Standard Metal Enclosure
• Color : Standard RAL 1028 or RAL 1034 (Optional RAL 3020)
• Length (mm) : 4300
• Width (mm) : 2220
• Height (mm) : 1720
• Tyres : 4
• Empty Weight (kg) : 3900

• Control Display : Built-in electronic color graphics display with USB port
• Reporting : Thermal printer records tonnage and distance
• Monitoring : Displays pulling force, meter counter, speed and operating hours
• Tension Control : Constant tension on winch rope
• Protection : Full metal cover and enclosed bodywork
• Safety : Emergency stop button
• Stabilization : Four adjustable mechanical stabilizers
• Cooling : Oil cooling system for hydraulic circuit
• Rope Handling : Automatic rope-winder and rope guiding roller

• Standard : Wired remote control, Emergency stop, Thermal printer, Built-in reel winder
• Optional : Wireless remote control (option)
• Additional : Spare parts kit, Customized rollers and adapters (on request)
