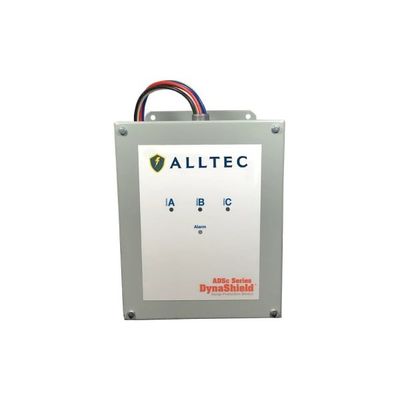

ALLTEC - Model ADSc Series -Surge Protection Devices

SHARE

ALLTEC’s fully-featured ADSc models are high-performance surge protectors designed specifically for critical panel locations. The ADSc incorporates high-energy MOVs with the best performing EMI filter on the market to protect against transients originating from induced lightning strikes, utility switching, and facility power noise.

Most popular related searches
surge protective device
surge protection
utility power plant
utility power

LED fault indicators for each phase provide real-time diagnostics. Options include alarm with red LED and dual Form C dry contacts for remote indication and an audible alarm. The ADSc Series is available for all voltages and configurations up to 600V. Housed in a rugged NEMA 12 enclosure, these devices are suitable for indoor applications.

  • 10 modes of protection
  • 200 kAIC fault current rating
  • Advanced EMI/RFI noise filtering (-45 dB) 3 kHz to 1 MHz
  • Optional 30 amp fuse allows direct connect to power bus
  • Resettable surge counter option
  • Listed to UL 1449 4th edition
  • 10-year standard warranty
