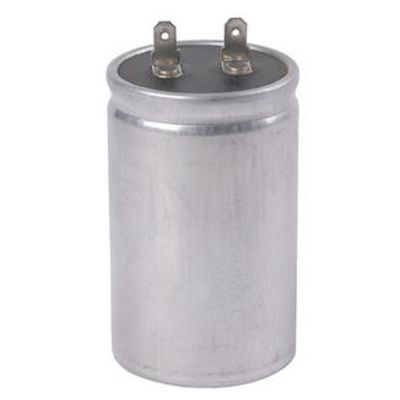

Cixi-Riyi - Model CBB60 1+1 -Aluminum Case Terminal Capacitor
The product has the characteristics of low loss, high insulation resistance, good self-healing, stable performance, impact current resistance, and strong overload capability. Epoxy resin fully sealed structure, suitable for breathing, air coolers, fans, hoods, electric water pumps, etc., self-driving start and run.
Most popular related searches
- Rated Voltage:200VAC- 500VAC
- Capacitance Range:0.8- 120|iF
- Tangent of loss angle tan 5<0.2%C20°C.100Hz)
- Between Terminals:2.0Un/2sC No flashover orpermanent breakdown)
- Highest allowable voltage:1.1 times of rated voltage
- Class of safety protection:SO, S3
- Rated Frequency:50/BOHz
- Capacitance Tolerance:±5%
- Standing Voltage:
- Between terminals and case:>2100VAC/2s(No dielectric breakdown or flashover)
- Maximum allowable circuit:1.3times of rated circuit
- Executing Standards:IEC60252, EN60252. GB/T 3667.1, UL810
