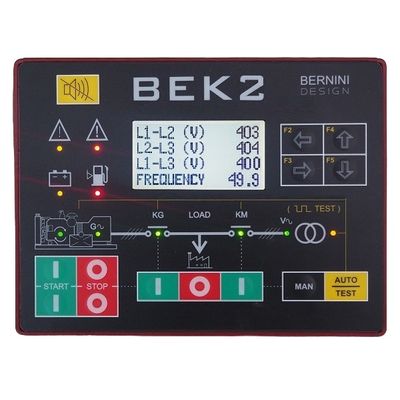

Bernini Design - Model BeK2 - AMF Control Panel for Backup Power Generators
The BeK2 AMF control panel is a sophisticated processor-based device tailored for seamless integration with both new and older generator systems. Compliant with NFPA-110 and NFPA-99 standards, it comes housed in a robust IP62-rated enclosure made of zinc double-coated steel, ensuring durability against environmental stressors and electromagnetic interference. Featuring a 128x64 graphic display, it supports a broad operating temperature range from -25°C to +70°C, enabling reliable functionality in diverse conditions. Key measurements include voltage (Vac, Vdc), power (kW, kVA, kVar), frequency (Hz), and other critical engine parameters like oil pressure and battery voltage. The BeK2 offers 10 programmable inputs and 7 static, short-circuit-proof outputs, catering to bespoke configurations. Additionally, it features a USB 2.0 interface for convenient programming and diagnostics, enhancing flexibility and customization for industrial, telecom, and specialized applications.The BeK2 AMF control panel features a 128X64 graphic display, operating in a temperature range between -15°C and +50°C, indicating parameters, alarms, and miscellaneous functions. The AMF control panel measurements include Vac, Aac, Vdc, kVA, kVar, kW, Energy, Pf, Hz, hour count, R.p.m., Oil Pressure, Engine Temperature, Battery Vdc (Engine), and Fuel Level.
The BeK2 control panel complies with NFPA-110 / NFPA-99 specifications. The Be-K2 controller is the best choice when making an AMF panel that interfaces with an old or second-hand generator. The BeK2 features 10 programmable inputs. You can set the input in analogue or digital mode to perform dedicated tasks. The 7-static short-circuit-proof outputs are fully programmable. The rich set of over 150 adjustable settings makes this AMF control panel the most advanced piece of AMF controller available today in the market.
We do not use plastic materials in our reliable AMF control panels. The enclosure of the BeK2 control panel is made of zinc double-coated steel. Zinc is a heavy element, and when alloyed with other metals, it provides better corrosion resistance, stability, dimensional strength and impact strength.
The rear cover made of metal is the best solution for shock-proof equipment. It is an excellent protection against electromagnetic fields by enclosing the 32-bit processor into a Faraday cage. The BeK2 AMF control panel provides an extraordinary advantage over competitors' plastic-based enclosures.
Follow our advice. We have made AMF panels since 1984. We have 40 years of experience servicing AMF panels for industrial, telecom and specific applications.
STEP 1
Never install an AMF control panel on the generator. It would help if you carried all 400V cables from the mains into the generator. This is extremely dangerous in case of lightning. You will get 100% trouble on your generator.
STEP 2
This is the right way to manufacture a long-term reliable AMF panel. The utility power will never affect the DC circuits of the generator. All overvoltage will be shut down inside the panel. It will act as a Faraday cage,
