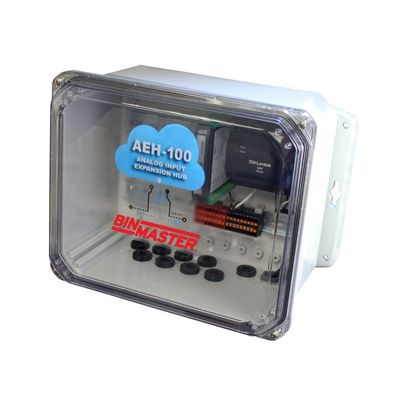

BinMaster - Model AEH-100 -730-0794 -Analog Expansion Hub with 8 Analog Inputs
AEH-100 analog expansion hub with 8 analog inputs simplifies setting up a new sensor system or upgrading an existing sensor system to a Cloud-based network. It connects analog sensors to a single BinCloud® gateway or any other client software.
Most popular related searches
power sensor
mounting bracket
power distribution
power distribution network
power network
distributive power
distributed power
UPS system
- Upgrade an existing system to the Cloud
- Monitor inventory using any BinCloud® software
- Connect up to 16 analog sensors to BinCloud® via the
- BinCloud® gateway
- Control costs by eliminating hardware and subscription costs
- Daisy chain the AEH-100 to the BinCloud® gateway via RS-485
- Easy all-in-one installation package simplifies setup
- Compatible with existing sensor systems
- Accommodates either 8 or 16 analog inputs
- 24 VDC onboard to power sensors or sensor loops
- Sends data to any BinCloud® inventory management software
- Compatible with wireless options such as the BinCloud® gateway
- Multiple AEHs can be connected to BinCloud® gateway
- Use with WL-19 and WL-20 wireless transceivers to reduce wiring
- Works with Chiyu BF-430 universal serial device to enable an IP/Ethernet network
- Power distribution blocks for routing and connecting wiring
- Connects to a wide range of BinMaster or other brands of sensors
- Highly scalable for large facilities with many vessels and sensors
- Input Power: 120-240 VAC
- Inputs: AEH-100: Up to 8 analog Inputs; AEH-200: Up to 16 analog inputs
- Output Power Supply: 24 VDC
- Sensor Support: 2 or 4-wire analog
- Communication: RS-485 or TCP
- Hub Support: 100s of hubs connected to a single gateway or client
- Sensor Compatibility: Any 4-20mA, 0-20mA, or -20-20mA capable sensor
- Sensor Brands: BinMaster brand or sensors made by other manufacturers
- Enclosure: 13.2” x 11.2” x 7.7”, weather resistant, mounting brackets included
- Temperature: Standard industrial temperature ranges
