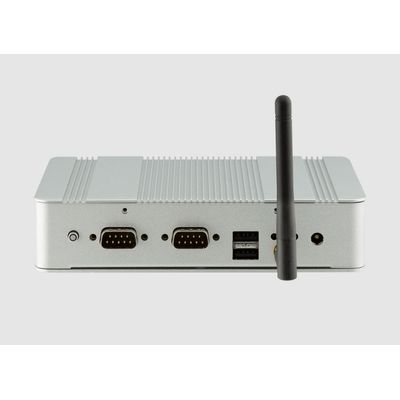

Model IEC-3390 - Android Dual Display Terminal

Android Dual Display Terminal, ARM-Based Boxed System with Dual-Core Corte-A72+Quad Core Cortex-A53. Features: Ultra Low Power and Fanless Design Chassis System, High-performance ARMv8, 64-bit processor, Dual Cortex-A72 + Quad Cortex-A53, Support Onboard 4GB LPDDR4 memory and 64GB eMMC, Mali-T864 GPU, support 4K H.264/H.265 Video decoding, OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11, Maximum support- 2 x HDMI 2.0a output, 1x 4K and 1 x FHD@ 60Hz, Richful I/O ports for multiple industry applications, such as Digital Signage, Kiosk, and vending machine., Support Android 9.0

System

CPU: ARMv8, Dual Cortex-A72 + Quad Cortex-A53, 64-bit5

Memory: LPDDR4, 4GB, soldered onboard

Storage: 64GB eMMC Flash Soldered onboard

Graphics: Mali-T864 GPU

I/O Interface

Serial Port: 2 x RS232, DB-9 interface

USB Port: 1 x USB Type C

4 x USB 2.0 Type A (Front I/O: 2, Rear I/O: 2)

LAN: 2 x GbE, RJ-45 Ethernet

Display Port: 2 x HDMI 2.0a output,

Max support 1x4K+1x FHD @60Hz

Audio: 1 x 2V RMS Line-out with 3.5mm Phone Jack

Expansion Bus: 1 x micro SDHC/micro SDXC/micro SD (Max. 256GB) card socket

Power: 1 x Tact Switch, 2.5mm DC Jack

LED Indicator: 2, Green LED: DC-IN; Blue LED: Power-On

Button: 1 for Reset Button, 1 for FW download Button

Wireless

WLAN: 1 x IEEE 802.11 a/b/g/n/ac

Bluetooth: BLE 5.0

Environmental

Operating Temp.: 0 ~ 50°C

Storage Temp.: -10 ~ 70°C

Qualification

Certification: CE, FCC

Power Requirement

Power Input: DC 12V/2A input

Mechanical

Construction: Aluminum, Iron

Weight: TBD

Dimensions (W x D x H): 163 x 109 x 35 mm (6.42” x 4.29” x 1.38”)

OS Support

Android 9.0

Ordering Information

IEC-3390: Android Boxed System, 4GB/64GB, with 1 x 12V/2A DC-IN power Adapter, 1 x WiFi Antenna
