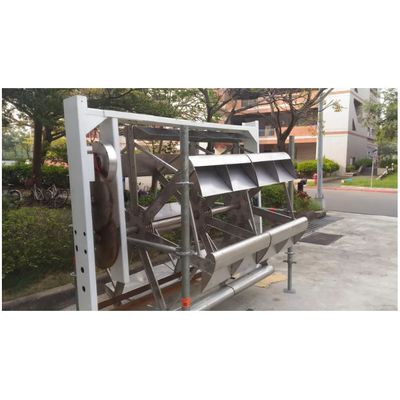

Anliatec - Model 2kW - 100kW -Micro-Hydro Turbine System

SHARE

Our Micro-Hydro Turbine system designed in Taiwan is implemented in several South-East Asian countries since 2018. It produces 2kW to 100kW of electricity using the natural flow of water. Installed in rivers and irrigation canals, it is useful in small and remote communities that require only a small amount of electricity.

Most popular related searches
hydro turbine system
micro hydro turbine
hydro turbine
hydropower turbine
microturbine system
microturbine
hydro turbine design
battery storage
power generation
turbine design
GENERATOR
  • Rating: 2kW 3-phase 220V [3kW 3-phase 220V, 4kW 3-phase 220V, 5kW 3-phase 220V]
  • Optimum Power Generating RPM: 300~350rpm
WATER WHEEL
  • Min Head Height: < 1 metre
  • Optimum Water Speed: 1-3 m/s
  • Water Wheel Type: 11 blade modular design (expandable to 22-blade/33-blade as required)
CONTROLLER
  • Self-Protection System: Short-circuit brake/Resistance brake
  • Circuit Conversion: Battery Storage/Network Supply
INVERTER
Input Specifications
  • Rating: 5kW
  • Max Power Input: 5400W
  • Standard DC Input Voltage: 100V~550V
  • Max Power Tracking Voltage Range: 175V to 500V +/-5%
  • System Start-up Voltage: 100 +/-5%
  • Working Voltage : 100 +/-5% ~ 550-5%+0%V
  • Max Input Current: 15ADC
  • DC Ripple Voltage: < 10% DC insulation resistance: > 8M ohm
  • Switch: 20A
  • Input Socket: Tyco or MC socket (3 pairs)
Output Specifications
  • standard power output: 5000W
  • max power output: 5400W
  • Operating Voltage Range: 110V-264V
  • Standard Operating Voltage: 230Vac
Operating Frequency Range
  • Working Frequency: 50 or 60Hz autoselect (47.5Output Power Current Distortion max distortion: 0.97
  • DC Output at full loading: < 0.5%
  • Internal Power Consumption: < 7W Min conversion efficiency (DC/AC): >90% at input voltage >210V, loading >20%
  • Max. conversion efficiency (DC/AC): >97%
  • European Efficiency: >96%
Dimensions
  • L x H x D: TBD
Operating Environment
  • European Efficiency: >96%
  • Water/Dust Protection Level: IP 65
  • Operating Temp Range: -20°C to 70°C
  • Humidity: 0 to 95%, no condensation
  • Cooling: Natural
Protection
  • Anti-isolation: Photovoltaic cut-in
  • Network: High/Low Frequency Protection
Certifications
  • Safety: CE Mark
