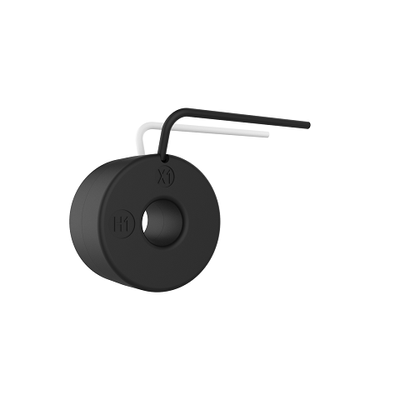

Sifam Tinsley - Model 1RL - ANSI Metering Class Current Transformers for Power Monitoring

ANSI Metering Class current transformers from Sifam Tinsley are designed to meet high precision requirements in power monitoring applications. They offer minimal phase angle error and are constructed to adhere strictly to ANSI standards. These transformers operate across a wide frequency range from 50 to 400 Hz and feature an insulation level of 600 volts with a 10kV BIL full wave specification. The transformers have a window size of 0.64 inches and weigh approximately 0.42 pounds. Equipped with UL 1015 105°C, CSA-approved flexible leads, these transformers support #16AWG conductors, 24 inches in length, with options for non-standard lengths upon request. Secondary current output of 1 Amp and others are available on demand. These features make them suitable for precise and reliable power monitoring in various electrical systems.
