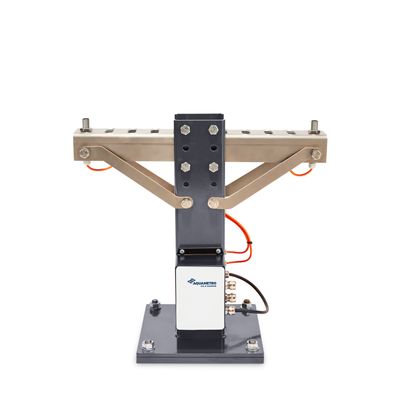

Aquametro - Model SPM -Shaft Power Meter
System for measuring engine / ship performance and fuel / propulsion efficiency as well as monitoring SHaPoLi The Shaft Power Meter is the key component for measuring ship performance and fuel / propulsion efficiency. It is the cost-effective solution when reliable shaft power measurement and monitoring (Shaft power limitation) is required. The system is easy to install and requires no electronic parts on the shaft. SPM operates absolutely contact-free and can be extended with our fuel performance system FPS to obtain all important data for optimizing ship performance and fuel efficiency as well as ship propulsion performance.Most popular related searches
power meter
shaft power monitoring
fuel efficiency
shaft power monitor
power monitoring
engine monitoring
- Cost-effective solution
- Easy self installation possible - plug & play by crew
- No electronic parts on shaft
- Basis for every fuel performance system
- Easy to read trend curves for performance evaluation
- Steady observation of hull and propeller efficiency possible
- Easy calibration of SPM based on indicated power measurement
- Maintenance free
- SHAPOLI / EEXI
- RPM, torque and power signals
- Reliable data
- Key component for fuel performance system FPS to optimize fuel / propulsion efficiency
- PLC-based system with web-based visualization via Ethernet
- Data storage on SD card
- Power supply: 24 VDC
- Power consumption: >2 A
- Min / max shaft diameter: 200 / 1200 mm
- Max speed of shaft: 800 rpm
