CIQTEK - Model AWG4100 - Arbitrary Waveform Generator

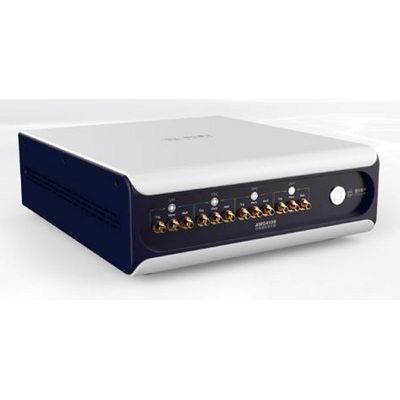

The AWG4100 instrument is a high-performance arbitrary waveform generator with multiple channels. AWG4100 has four independent single-ended waveform output channels, with up to 1.2 GSa/s sampling rate and 16 bit vertical resolution. Combined with flexible user-defined waveform editing and sequence playback functions by programming up to 512 MSa waveform storage per channel, it can easily handle with the com- plex waveform in many different scenarios.
Most popular related searches
- Arbitrary Waveform Generator
- Number of channels : 4
- Vertical resolution : 16 bit
- Waveform memory for each channel : 512 MSa
- Analog bandwidth : 330 MHz
- Waveform granularity : 4 samples
- Minimum waveform length : 8 samples
- Sequence programmer clock frequency : Sampling rate divided by 4
- Marker outputs : 1 per channel, SMA connector (front panel)
- Wave Signal Output
- Connector : SMA
- Output impedance : 50 Ω
- Output coupling : DC
- Output mode : Direct output
- Output range : 1 Vpp （into 50 Ω）
- Offset voltage : < 1 mV （into 50 Ω）
- Phase noise : < -110 dBc/Hz @100 MHz
- Voltage noise : < 20 nV/√Hz @100 kHz
- Inputs
- Trigger input : channel, SMA connector (front panel)
- Trigger input impedance : 50 Ω
- Trigger input amplitude range : 3.3 V (into 50 Ω)
- Reference clock input : BNC connector (rear panel)
- Reference clock input frequency : 10/100 MHz
- Time- and Frequency-domain Characteristics
- Sampling rate : 1.2 GSa/s
- Rise time (20% to 80%) : < 1 ns （± 500 mV）
- Skew between outputs : < 150 ps
- Connectivity and others
- Host connection : LAN / Ethernet，1 Gbps
- Size : 258 mm * 291.88 mm * 93 mm
- Weight : 2.9kg
