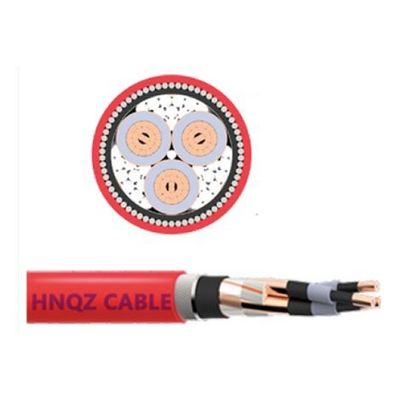

Qingzhou - Model BS 6622 -Armoured Power Distribution Cables - 3.8/6.6kV Cable 24
Armoured power distribution cables for external and direct burial applications in power networks.
Most popular related searches
medium-voltage power cable
power distribution
power cable
medium voltage power
power network
medium voltage cable
medium voltage cables
distributive power
distributed power
- Voltage Rating Uo/U (Um) 3.8/6.6 (7.2) kV
- Test Voltage (AC) 15kV
- Temperature Rating
- Maximum operating temperature: 90°C
- Maximum short circuit temperature: 250°C
- Minimum Bending Radius Single core: 15x overall diameter Multi core: 12 x overall diameter
- (Single core 12 x overall diameter and 3 core 10 x overall diameter where bends are positioned adjacent to a joint or termination provided that the bending is carefully controlled by the use of a former)
- Conductor: Class 2 stranded compacted copper conductor
- Conductor Screen: Semi-conductive XLPE (Cross-Linked Polyethylene)
- Insulation: XLPE (Cross-Linked Polyethylene)
- Insulation Screen: Semi-conductive XLPE (Cross-Linked Polyethylene)
- MetallicScreen: Concentric copper wires and copper tape
- Separator: Binding tape
- Inner Sheath: PVC (Polyvinyl Chloride)
- Armour:
- Single core: AWA (Aluminium Wire) Multi core: SWA (Galvanised steel wire)
- Sheath: PVC (Polyvinyl Chloride)
- Sheath Colour: Red
