Assembly System for Gas Generators

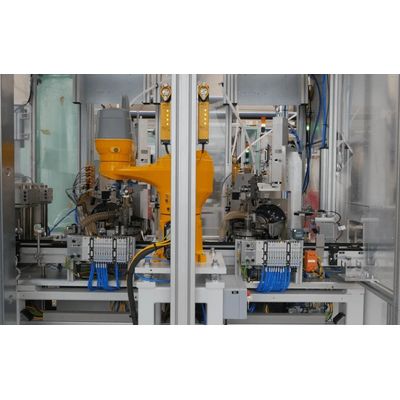

This machine solution is for a fully automated assembly line for the production of gas generators for airbags. The plant is partially loaded and unloaded by an operator, but critical processes are carried out fully automatically. The plant has an autonomy time of 120min. Through various degrees of automation, a cycle time of 6.9s per generator is possible. The design and construction of the assembly system was carried out taking into account ergonomic guidelines, as well as compliance with guidelines for explosive substances. On the system are joining processes (force-monitored), welding processes (laser welding, capacitor discharge welding), various camera inspections, testing processes (leak testing), and setting processes. The assembly data of each generator is stored in a master computer system, so that even the room temperature during assembly can be tracked.
