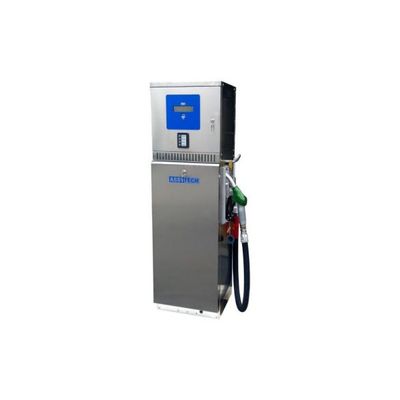

AT02/LC - Model AT02/LC Series -Fuel Dispenser

Direct connection to 1-2 level probes, with direct visualisation on the dispenser display of the of the heightness of the product in the tank.

Possibility to install an integrated management system for enabling deliveries with data download via LAN, WiFi or GPRS modem.

Designed to refuelling unleaded petrol up to 50 l / min and diesel up to 180 l / min.

In the case of use for the supply of petrol, a vapor recovery device is provided.

The AT15 dispenser designed to dispense fuels and additives, ensures high quality and reliability, as the result of a consolidated experience and continuous technological updating.

The AT15 dipeser is an apparatus of the IIA group suitable for use in areas classified with the presence of flammable gases (Zone 1, category 2G or zone 2, category 3G). It is designed and built according to the ATEX directive 2014/34 / EU, according to the standard: EN13617-1

• Housing Stainless steel
• Flexible hose Light version, section according the flow rate
• Nozzle Automatic type, ATEX certificate
• Computing head LCD display 6 digit 1” high, LED backlighting
• Pump Single block type, non-return valve. OIML approved
• Filter Stainless steel, 100 μm, recyclable
• Meter ± 0,5% (MID Compliant)
• Motor Ex-proof, Three Phase, 1/2,2 KW (380 V)
• Flow rate From 40 to 120 l/min
• Operating temperature -25°C ÷ +55°C (heating system for temperature less than -10 °C)
• Vapor Recovery (VRS) Mechanical type on ZVA GRVP nozzle with proportional adjustment
• Monitoring VRS Available on request
• Marking CE-M EU Type Approval No. T10820 (MID 2014/32/UE), CE II 2G Ex IIA T3 Gb (ATEX 2014/34/UE) (Fuel), CE II 3G Ex IIA T3 Gc (ATEX 2014/34/UE) (Diesel)
