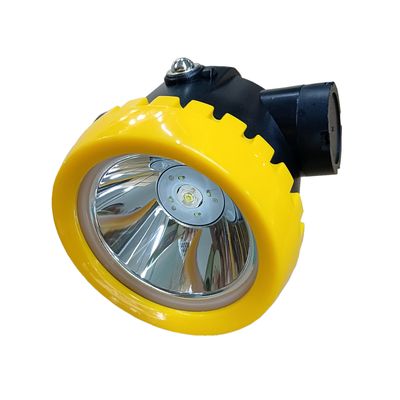

KL1.2Ex LED Miner’s cap lamp
• ATEX (Ex ia I M1) certified, in accordance with Directive 2014/34/EU, complies with standard: EN 60079-0:2012, EN 60079-11:2012, EN 60079-35-1:2011, EN 50303:2000
• It is specially designed for use in underground mining operations, tunneling.
Main specification
Item KL1.2Ex
Battery style Li-ion
Rated capacity 1.4Ah
Rated voltage 3.7V
Lighting time ≥11h
Main light source
Working current 0.12A
Max luminance
(1m away from the lamp)
When lighting begins ≥3500 lx
After lighting for 11h ≥2000 lx
Sub-light source rated power 0.2W
Life of cap lamp 2 years
Charging Voltage (6-8)V
Charging time ≤8h
Explosion protection Ex ia I Ma
Protection grade IP65
Exterior dimensions Φ67x82x73mm
Weight 0.2kg
