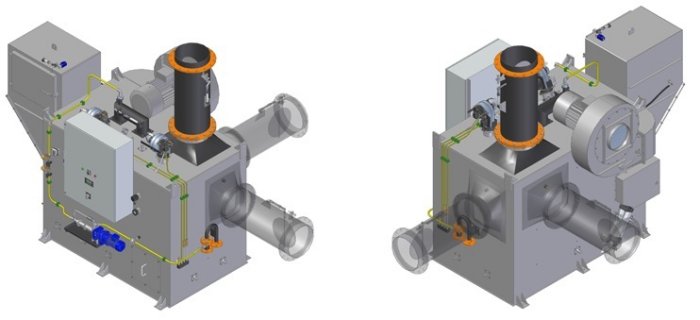

Atlas - Model 1200 SL P -Large Solid and Liquid Waste Incinerator
The 1200 SL P is a large incinerator for burning solid and liquid waste, suitable for bigger merchant vessels, and where no waste sluice is required.
Most popular related searches
liquid waste incineration
solid waste incineration
sludge oil incineration
incineration
incinerator
sludge oil
large incinerator
waste incineration
large liquid waste incineration
large solid waste incineration
- Combustion Capacity (kW) : 1163
- Combustion Capacity (kcal/h) : 1.000.000
- Combustion Capacity Solid Waste (IMO waste specification) : 500 L/charge
- Combustion Capacity Liquid Waste (IMO standard is 20% water content)
- 100 l/h at 0% water content
- 135 l/h at 20% water content
- 200 l/h at 50% water content

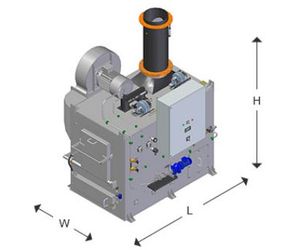

- W: 2127mm
- L: 2910mm
- H: 2952mm
- nduced draught air ejector for evacuation of flue gasses; hence Flue Gas Fan is not required
- Settling tank not necessary
- Burning oil sludge with up to 50% water without pilot fuel
- Three chambered design - clean burn
- Atlas designed sludge burner with no rotating parts
- Simultaneous burning of sludge oil and solid waste
