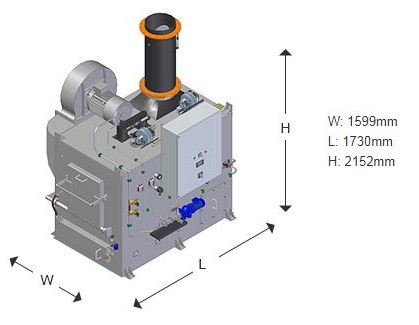

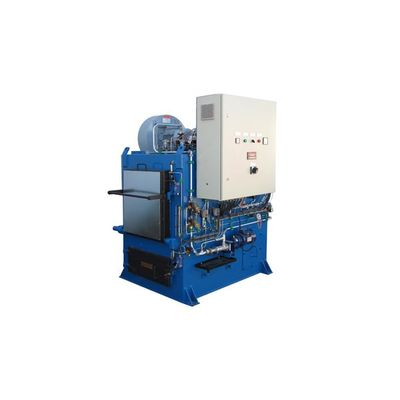

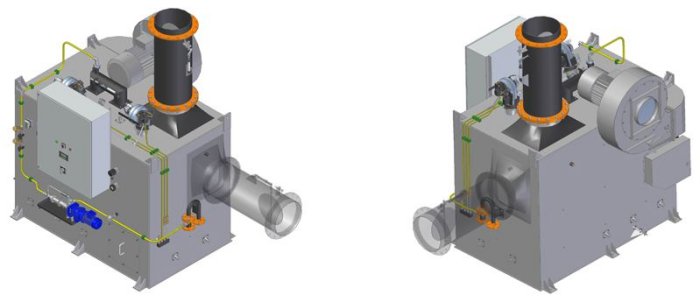

Atlas - Model 200 SL M - Solid and Liquid Waste Incinerator
From Incinerator - ATLAS 200 (209 kW) - Liquid & Solid Waste
The 200 SL M is the most compact solution for burning solid and liquid waste with a high water content, (above 50%), suitable for smaller vessels, where space is limited, and where no waste sluice is required.
Specifications:
- Combustion Capacity (kW) : 209
- Combustion Capacity (kcal/h) : 180.000
- Combustion Capacity Solid Waste (IMO waste specification) : 150 L/charge
- Combustion Capacity Liquid Waste (IMO standard is 20% water content) :
- 20 l/h at 0% water content
- 24 l/h at 20% water content
- 40 l/h at 50% water content
Atlas Incinerators Unique Advantages
- Induced draught air ejector for evacuation of flue gasses; hence Flue Gas Fan is not required
- Settling tank not necessary
- Burning oil sludge with up to 50% water without pilot fuel
- Three chambered design - clean burn
- Atlas designed sludge burner with no rotating parts
- Simultaneous burning of sludge oil and solid waste
