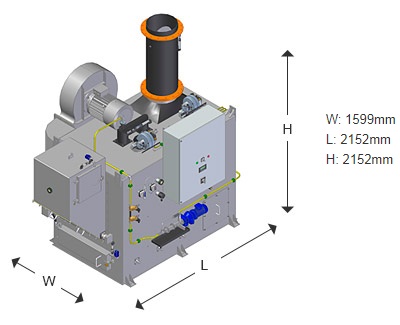

Atlas - Model 200 SL WS M - Solid and Liquid Waste Incinerator
From Incinerator - ATLAS 200 (209 kW) - Liquid & Solid Waste
The 200 SL WS M is the most compact solution for burning solid and liquid waste with a high water content, (above 50%), available with a 30L (waste bag) sluice size, and suitable for smaller vessels, where space is limited.
Specifications
- Combustion Capacity (kW) : 209
- Combustion Capacity (kcal/h) : 180.000
- Combustion Capacity Solid Waste (IMO waste specification) : 40 kg/h max. 160 kg/24 hours
- Combustion Capacity Liquid Waste (IMO standard is 20% water content) :
- 20 l/h at 0% water content
- 24 l/h at 20% water content
- 40 l/h at 50% water content
Flue Gas Outlet Alternatives

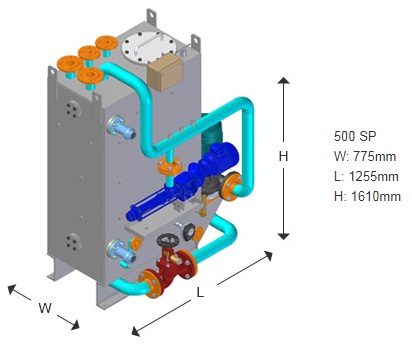

In case of height restrictions in the incinerator room we can offer the 200 type incinerator with the outlet in the side as shown below.
Atlas Incinerators Unique Advantages
- Induced draught air ejector for evacuation of flue gasses; hence Flue Gas Fan is not required
- Settling tank not necessary
- Burning oil sludge with up to 50% water without pilot fuel
- Three chambered design - clean burn
- Atlas designed sludge burner with no rotating parts
- Simultaneous burning of sludge oil and solid waste
