Atlas - Model 200 SL WS P - Solid and Liquid Waste Incinerator
From Incinerator - ATLAS 200 (209 kW) - Liquid & Solid Waste
The 200 SL WS P is the most compact solution for burning solid and liquid waste, available with a 30L (waste bag) sluice size, and suitable for smaller vessels, where space is limited.
Specifications
- Combustion Capacity (kW): 209
- Combustion Capacity (kcal/h): 180.000
- Combustion Capacity Solid Waste (IMO waste specification): 40 kg/h max. 160 kg/24 hours
- Combustion Capacity Liquid Waste: 20 l/h at 0% water content
- (IMO standard is 20% water content): 24 l/h at 20% water content, 40 l/h at 50% water content

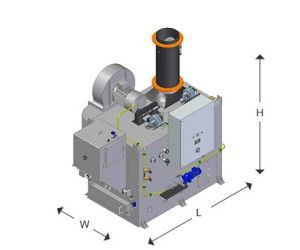

Incinerator Dimensions
Incinerator dimensions
- W: 1599mm
- L: 2152mm
- H: 2152mm

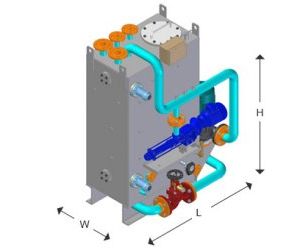

Tank Dimensions
- 500 SP
- W: 775mm
- L: 1255mm
- H: 1610mm
Atlas Incinerators Unique Advantages
- Induced draught air ejector for evacuation of flue gasses; hence Flue Gas Fan is not required
- Settling tank not necessary
- Burning oil sludge with up to 50% water without pilot fuel
- Three chambered design - clean burn
- Atlas designed sludge burner with no rotating parts
- Simultaneous burning of sludge oil and solid waste
