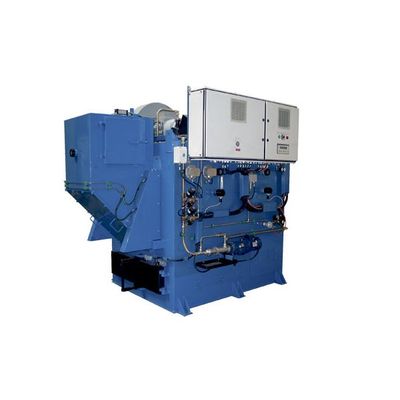

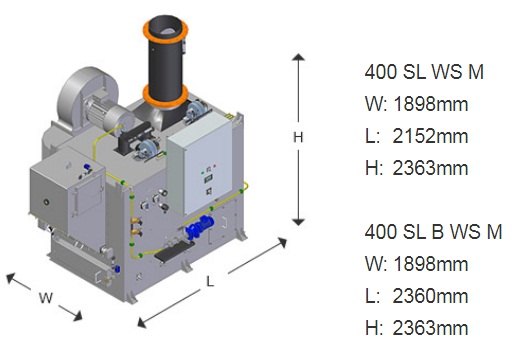

Atlas - Model 400 SL WS M -Solid and Liquid Waste Incinerator
The 400 SL (B) WS M is the second most compact solution for burning solid and liquid waste with a high water content, (above 50%), available with a 30L or 70L (waste bag) sluice size, and suitable for offshore supply vessels and small merchant vessels.
Most popular related searches
liquid waste incineration
waste incineration
solid waste incineration
sludge oil incineration
incineration
incinerator
sludge oil
combustion waste
solid-liquid incinerator
liquid incinerator
- Combustion Capacity (kW) : 465
- Combustion Capacity (kcal/h) : 400.000
- Combustion Capacity Solid Waste (IMO waste specification) : 70 kg/h max. 280 kg/24 hours
- Combustion Capacity Liquid Waste (IMO standard is 20% water content)
- 42 l/h at 0% water content
- 53 l/h at 20% water content
- 84 l/h at 50% water content
- Induced draught air ejector for evacuation of flue gasses; hence Flue Gas Fan is not required
- Settling tank not necessary
- Burning oil sludge with up to 50% water without pilot fuel
- Three chambered design - clean burn
- Atlas designed sludge burner with no rotating parts
- Simultaneous burning of sludge oil and solid waste
