Nel ASA

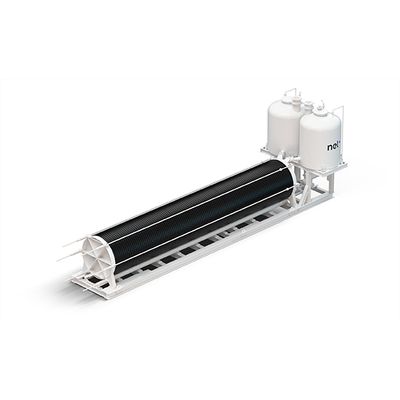

Nel - Model A Series - Atmospheric Alkaline Electrolyser
FromNel ASA
The A Series boasts a remarkable cell stack power consumption as low as 4.5 kWh/Nm³, setting a new standard for energy efficiency in hydrogen production.
Combine multiple A485 electrolysers to meet any required production capacity. For instance, the A4000 seamlessly integrates 8 electrolysers, achieving an impressive production capacity of 3880 Nm³/h of hydrogen.
Operating at atmospheric pressure, the A Series ensures an exceptionally safe environment. Leakages are highly unlikely, and in the rare case of a leak, the volumes are minimal.
Downstream of gas separator modules, our technology ensures thorough cleaning and cooling of hydrogen before delivery. The gas holder maintains a slight overpressure, serving as a buffer for the compressor.
Nel provides a standard package, including the process and safety control system for the atmospheric part of your hydrogen production system.Most popular related searches
hydrogen production
biomethane production
fuel cell
hydrogen fuel cell
biofuel product
biofuel production
synthetic fuel
biogas biomethane
blast furnace
energy efficiency
- Automatically controlled
- Built for future expansion
- Highest efficiency
- Minimum maintenance
- Seamless capacity scaling
- Ammonia Production
- Annealing
- Autoconsumption
- Biofuel Production
- Biogas/Biomethane Production
- Biomethanol Production
- Blast Furnace Injection
- Carbon Capture
- Catalytic Atmosphere
- Chemical Feedstock
- Combustion
- Cylinder/Tube Truck Filling
- Desulfurization
- Direct Gas Injection
- Direct Reduced Iron
- Energy Storage
- Fertilizer Production
- Float/Flat Glass Production
- Fuel for Fuel Cells
- Fuel for Hydrogen Internal Combustion Engines (HICE)
- Fuel for Turbines
- Heat Treating
- Hydrogenation
- Methanol Production
- Powder Metallurgy
- Powder Processing
- Protective Atmosphere
- Sintering
- Space Heating
- Waste to Synthetic Fuels
Description:
• MW-class Alkaline Stack Module for on-site hydrogen generation utilizing a modular design for ease of installation and integration with the balance of plant
Electrolyte: 25% KOH solution
Maximum Production Rate: 485 Nm3/h (+0/-3%) – 1,046 kg/24 h (+0/-3%)
Operating Pressure – 0.03 barg (0.435 psig)
Power Consumption at Stack per Unit of H2 Gas Produced at 100% Capacity
4.5 kWh/Nm3 – 50 kWh/kg
Purity (Concentration of Impurities): 99+% [saturated gas with liquid water, O2 < 1 %]
Ramp Rate (% of full-range): > 10% per minute
Turndown Range: 15 to 100%
