Aton - Power to Heat Meter

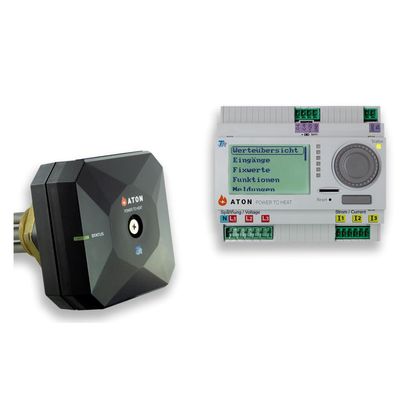

ATON is a plug & play solution for using surplus PV energy – without additional wiring. It consists of an energy meter and an immersion heater, which can be variably controlled from 50 W to 3 kW, for installation in a buffer cylinder. Through a wireless connection, the energy meter (x2-tech) specifies the output the immersion heater can consume. The immersion heater sends all measurements (high limit safety cut-out, internal temperature and the values of the two external sensors) back to the energy meter.
-
Most popular related searches
Benefits
- Minimal installation effort thanks to new x2 wireless technology and factory program
- Freely programmable for individual requirements
- Energy meter and immersion heater are connected ex works
- Up to 12 immersion heaters per energy meter
- Wireless range ~1 km free space / 2 reinforced concrete ceilings or walls
Possibilities
- Optimisation of on-site consumption rate
- Central heating backup
- Domestic hot water heating outside the heating season (e.g. via a fresh water module)
- Limited use with cylinders for drinking water!
- DL bus for controlling power controllers for enhanced energy management
- Remote access, datalogging and visualisation via C.M.I.
Specifications
Scope of delivery:
- Immersion heater EHS-R 3kW
- DHW tank sensor BFPT1000
- energy meter CAN-EZ3A
- 3 current sensors (50 A, the CAN-EZ3 can measure 3x 10 kVA)
- external radio antenna
Interfaces:
- DL bus
- CAN bus
- Micro SD card
- wireless
The immersion heater is eligible for use in drinking water environments, but eligibility for installation in cylinders for DHW or drinking water is limited by galvanic reactions. Refer to manual for details!
