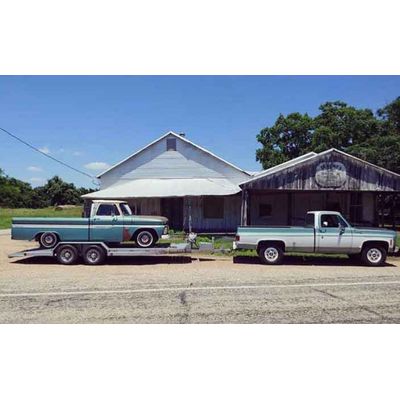

Ranch King - Model AC70 SERIES 7,000# GVWR -Auto & Cycle Trailer
Ranch King Auto Carrier is crafted with the Auto Enthusiast in mind. Equipped with the highest craftmanship and quality. Low profile construction. 4′ to 5′ Dovetial depending on overall trailer length. Available with the wood middle or without depending on your needs. Media blast pre-treat, Epoxy Primer and Urethane Topcoat System finish off the custom contruction with the coating durability it deserves.
Most popular related searches
- GVWR: 7,000#
- AXLES: (2) EZ LUBE 3,500# DEXTER AXLES
- BRAKE: (1) REAR ELECTRIC BRAKING AXLE
- COUPLER: 2″ BULLDOG STYLE COUPLER
- TONGUE: 5″ CHANNEL WRAP TONGUE
- FRAME: 5″ CHANNEL 6.7#
- CROSS MEMBER: 3″ X 2″ X 11 GA. TUBING ON 36″ CENTERS
- FENDERS: 1/8” HEAVY DUTY DIAMOND PLATE FENDERS
- FLOOR: 1/8″ DIAMOND PLATE PERFORATED RUNNERS 24″ WIDE WOOD CENTER
- DOVE TAIL: 18’= 4′ DOVETAIL/20’= 5′ DOVETAIL
- RAMP: SR′ SLIDE OUT RAMPS 16″ WIDE
- JACK: 5,000# DROP LEG JACK/SAND FOOT/FRONT WIND
- LIGHTS: LED LIGHTS ENCLOSED STEEL BOXES
- WIRING: SEALED HARNESS RAN THROUGH FRAME
- MOUNT: SPARE TIRE MOUNT
- TIRES: LIONSHEAD 225/75R 15″ D-RATED 8-PLY
- WHEELS: 15” MOD WHEELS (5)-LUG 5.5 PATTERN 1/2″ WHEEL STUD
- PREP: COMMERCIAL BLAST
- PRIMER: EPOXY PRIMER
- PAINT: URETHANE TOPCOAT
- SAFETY: 1/4″ SAFETY CHAINS DOT REFLECTIVE TAPE
- TIE DOWN: (6) D-RINGS, STAKE POCKETS EVERY 24”
- COMPOSITE FLOOR (LIFETIME WARRANTY) (CENTER FILL)
- 3/8” D-RINGS (SPECIFY LOCATION)
- 1/8” DIAMOND PLATE FLOOR (CENTER FILL)
- EXTRA ELECTRIC BRAKE
- HYDRAULIC BRAKES SURGE COUPLER DRUM BRAKES
- WINCH PLATE/RECEIVER TUBE
- TONGUE BOX
