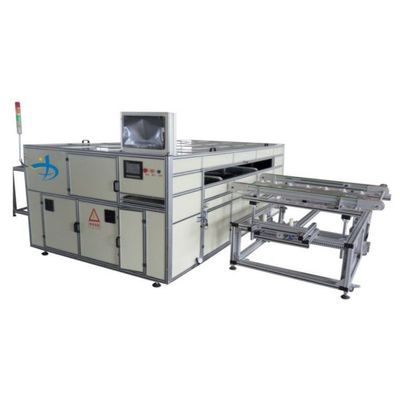

YiLi - Auto EL Test Machine
EL online detection, single pixel camera 1600W, other (800W, 2400W) pixel optional. This reflection, the height of the working platform of 950mm, the long side into the long side out. This device with built-in correction function, ensure that every power position is accurate, the deviation is less than 0.5mm? Input signal start machine, enter the component detection unit, after the completion of the test, selection of personnel classification, solar panels out. This is closed box, no light interference, ensure the shooting effect
Most popular related searches
crystalline silicon
solar photovoltaic
photovoltaic component
solar panel
solar component
solar battery
photovoltaic
- Application type: crystalline silicon component, Before lamination/after lamination?
- Application:length(1580-2100)mm*short(800-1000)mm
- Work efficiency:100—120ps/Hour
- Pressure:6-0.8mpa
- Gas consumption:5L/min
- Gas circuit interface:Φ10
- working voltage:220V/50HZ
- power:45KW
- Appearance size:3300mm*2250mm*1350 mm(L*W*H)
- working temperature:10~40?
- Operating humidity:≤75%
EL tester is based on Electroluminescent ,Mainly used to detect solar photovoltaic components, battery defects, Such as: Cracked,broken grid, debris, pollution, black film, inefficient film, poor welding and so on.
- The machine adopts aluminum alloy structure, light weight, no rust, no deformation.
- Automatic operation mode, simple and convenient operation, single and operation, save manpower cost?
- Components of domestic and foreign well-known manufacturers, equipment performance is stable, high safety?
- Special test software, automatic defect classification, preservation, high current testing, automatic generation of date file, watermark, query and other functions; parameter adjustment is simple and convenient, support printing, upload, remote control etc..
- According to customer’s different needs to design and manufacture.
