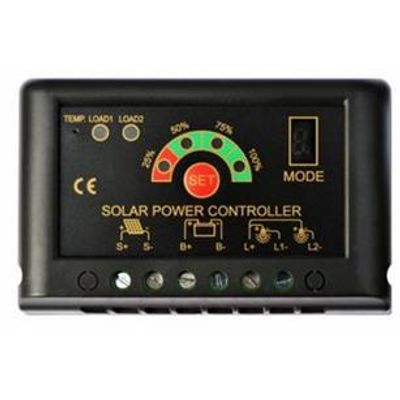

Jnge Power - Model JN-S 12V 24V 5A 10A 15A 20A 30A IP56 -Auto Small Solar Controller with Auto Rated Voltage Battery

SHARE

The product is the new generation of intelligent solar charge and discharge controller, it has strong stability and high service life. This series is 12V/24V automatic identification, with automatic detection battery voltage function, pwm charging way and comprehensive protection function: overcharge, over-discharge, over-current, short-circuit, reversed.

Most popular related searches
solar controller
solar charge control
solar charge controller
PWM solar charge controller
solar charge
charge controller
load current
solar product
  1. The controller has household type and street lamp type.
  2. The controller has 12V, 24V auto identification of the design.
  3. The controller has light control and time control (street lamp type).
  4. The controller has the overcharge, discharge, over current, short circuit, answer back and protective measures.
  5. The controller has the power-down protection, it means the controller can auto save the parameters we set before when there no power.
  6. With the Strong charging and equilibrium charging, floating three-step PWM control charging ways.
  •  Rated voltage 12 v, 24 v auto
  • Strong charging pressure 14.8V/29.6V
  • Equilibrium charging 14.5V/29V
  • Float charging pressure 13.7V/27.4V
  • Under voltage 10.8V/21.6
  • Under recover voltage 13V/26V
  • Maximum charging current 10A  20A  30A
  • Maximum load current 10A  20A  30A
  • Controller protect over-charge, over-discharge, over-current, short-circuit, reversed
  • Charging way PWM charging way
  • Working temperature -40-60℃
  • Weight (gross) 200g
  • Product size 136*92*31mm
  • Protection level IP56
