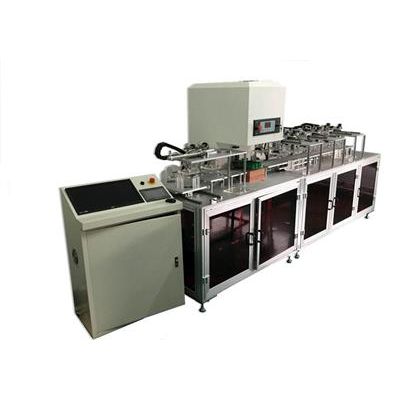

Solar Sunrise - Auto Solar Cell Tester

Electric performance test and record for Mono-Si or Poly-Si solar cells.

Most popular related searches

Class A AM1.5G irradiation spectrum;
0Pneumatic bumper pin-contact, Pin-contact, on the sunny side and planer contact on the rear side;
04-strand testing mode and 14-byte 4-channel high-speed synchronous acquisition;
010 preferences on display and testing data illustration in terms of sheets and curves;
0Irradiance and temperature self compensating;
0Vocal test reporting and screen counter for flashes;
024/7 tools uptime and 300,000 flashes for life-time of Xenon lamp;

Model : ASCT-1200 / ASCT-1800
Illuminated area (Solar cell size) : 25mm×125mm,156mm×156mm,160x160mm
Light source : AAA
Lamp lifetime : 100,000flashes
Max. throughput : 1200pcs/h / 1800pcs/h
Breakage rate : <0.3%
Solar cell thickness : 140-300μm
Spectral mismatch : ≤±12.5%（A+class）
Non-uniformity of irradiance: ≤1%（A+class）
Temporal instability of irradiance : ≤0.5%（A+class）
Spectral distribution range : 300-1200nm
Pulse width : 10-150ms adjustable
Range of light irradiance : 700-1200W/m2
Repeatability within Isc 60 times : ≤0.3%
Sorting gear : 32 gears
Loading mode : Overlap feeding （3 series×max300 cells）, belt-conveyor,buffer feeding from Solar cell box
Dimensions（LxWxH） : 4000X1100x1800mm
Power supply : 30V,380A,50/60HZ，three phases
