Redi Haul Trailers
RediHaul - Model RH16CTE-102 -Auto Transport
Main Frame: 5` x 6.7# high strength structural steel. Bed Crossmembers: 3` x 2.9# Jr I-Beam high strength structural steel. Tongue: A-frame 5` x 6.7# channel high strength structural steel & 6 x 3 x 3/16 rectangular tube high strength structural steel.
Most popular related searches
electric brake
LED lighting
mounting bracket
LED lighting system
lighting system
battery charger
battery system
- Axles: 2-3,500#; 2-3/8" O.D. Beam, .180 wall; Inner bearing, 1.378 I.D. outer beating Outer Bearing 1.063 I.D.
- Brakes: 10" x 2 1/4" electric brakes on all wheels E-Z lube hubs
- Suspension: Slipper Spring w/equalizer, 4 leaf spring 2" wide per axle per side, 2000# per side per axle
- Tires: 4- ST215/75R x 14 LR "C" 1,875# ea. 50 psi
- Wheels: 4- 5.5 x 14 single wheel 3.19 pilot 5 on 4 1/2" bolt circle 1,865# ea.
- Decking: 2" Treated Southern Yellow Pine

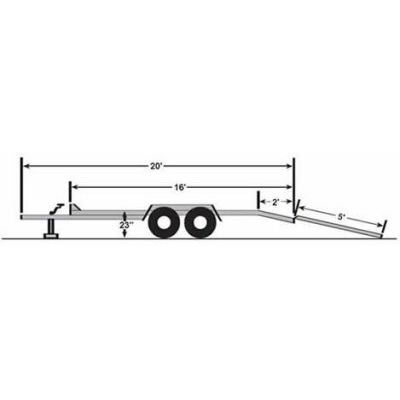

- Deck Dimensions: 16` long x 6` 6" wide (78" Between Fenders 99" O.A.W)
- Includes 14` Flat Deck & 2` Beavertail
- Deck Height: 23"
- Coupler: 2" adjustable height ball coupler
- Landing Jack: 2,000# Swing Up jack
- Ramps: 2- Formed 7ga x 60" ramps
- Wiring: Sealed modular wiring, 7 Pole Flat Prone Plug;
- Safety breakaway system w/ tow charger and battery
- Lights: All LED D.O.T. Required, sealed and shock mounted
- Extras: -1/4" x 36" Grade 43 Safety Chains with slip hook & safety latches;
- G.V.W.R.: 6,000#
- Capacity: 4,240#
- 78" Wide
- 16` Long (14` Flat + 2` Beavertail)
- 2- 5` Loading Ramps
- 2" Adjustable Height Ball Coupler
- 2" Nominal Treated Wood Deck
- Swing Away Parking Jack
- Safety Chains with Snap Hooks
- Sealed Modular Wiring System
- Sealed and Mounted LED Lights
- Safety Breakaway System with Battery
- 4- Tie Down Rings ("D" Rings) 2 per side
- Electric Brakes & E-Z Lube Hubs
- 2" Channel Mount Croft Coupler
- Manual Winch
- Winch Stand
- Hydraulic Surge Brakes
- Spare Tire & Wheel
- Spare Tire Mounting Bracket
