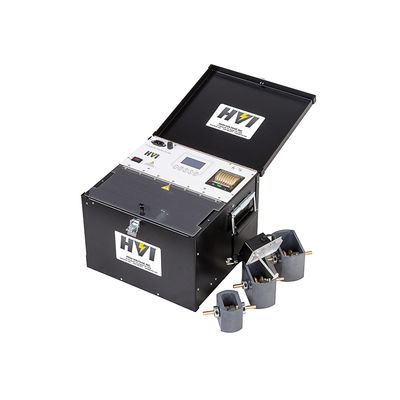

HVI - Model DTS-60A(F) -Automatic Oil Dielectric AC Test Set

SHARE

The DTS-60A(F) oil dielectric AC test set from High Voltage, Inc. is a sophisticated tool engineered to evaluate the voltage breakdown levels of insulating oils. Integrated with pre-set global standards, this equipment provides automated testing with the push of a button, accommodating custom test sequences as needed. It features a memory function for storing results, which can be downloaded or printed via an onboard thermal printer. Built for durability, the test set is encased in an aluminum and steel structure, designed to endure the demands of both field operations and laboratory environments. Its HV transformer is housed within a leak-proof, gasket-sealed steel tank, ensuring safety and reliability. The unit's lightweight and rugged construction makes it ideal for mobile usage and various testing applications, offering reliable performance in harsh environments. This test set is essential for professionals in electrical testing and maintenance, ensuring compliance with safety and performance standards.

Most popular related searches
dielectric testing
AC dielectric test
high voltage transformer

The DTS-60A(F) is a fully automatic liquid dielectric test set, typically used for testing the voltage breakdown level of insulating oils. The most common world standards are pre-programmed into the controls. Just hit the start button and the test is performed. Custom test sequences can also be programmed. Test results stored internally can be downloaded to a computer or printed using the onboard thermal printer.

These lightweight, rugged units have been designed for both field and laboratory use. Their HV transformer section is a leak-proof conventional steel tank with a gasket-bolted lid. The enclosures are made of thick aluminum. These instruments withstand the rigors of frequent transport and substation use.

  • Input: 120 V, 60 Hz, 7 A (F) 230 V, 50/60 Hz, 4 A
  • Output:0 – 60 kV AC, 800 VA resistive load
  • Controls:
    • 10 pre-programmed test sequences
    • User programmable test routines</>128 x 64 dot matrix crystal display
    • Intuitive, easy to use controls English, German, Spanish, French, Greek Thermal printer
  • Oil Test Cells: TCD-3 for ASTM D877, TCD-5 for ASTM D1816, TCD-12 for IEC 156
  • Size & Weight: (W x D x H) : 15 x 14 x 11.5 in., 65 lb. 381 x 356 x 292 mm, 29 kg
