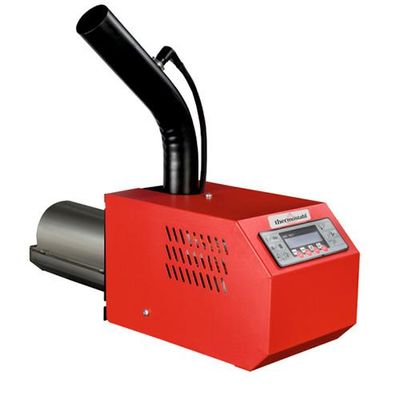

Thermostahl - Model MPB -40 - 450 kW -Automatic Pellet Burner

The heat output of the burner can be set fixed, or can be set automatically according to the heat demand. The burner furnace is produced of fireproof stainless steel which is resistnat to temperature up to 1.150°?.

The burner comes with its own controller, which can support multiple functions and standard feeding screw of 1,5m length. The burner comes in two versions: manual cleaning and automatic cleaning by means of compressed air.

• Built-in controller with multiple functions and LCD screen
• Automatic cleaning by means of compressed air (additional compressor requested)
• Automatic power setup according to the heat demand
• Automatic pellet feed according to power level
• Ceramic ingition element for long-life operation and fast ignition
• Control of central heating pump and hot water / buffer pump
• Temperature sensors for the boiler and hot water temperature

Safety devices:

• Elbow-shape feeder to prevent backfire entry from burner into pellet hopper
• Melting feeding hose
• Safety contact thermostat
• Fuse protection
• In case of power interruption, all parameter settings are stored in the memory of the controller
