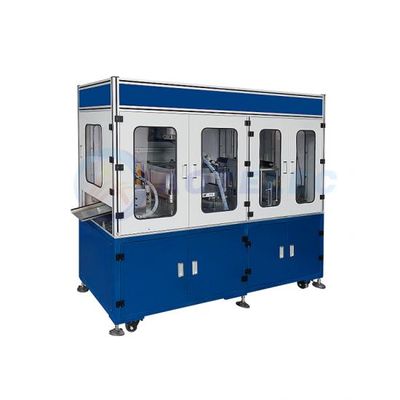

AOTELEC - Model AOT-MSK-120A -Automatic Pouch Case Forming Machine for Pouch Cell Production

1. Automatic high-speed operation
2. Touch screen control of forming/stamping process: stamping depth, holding time, delay time
3. Automatic roll feeding and adjustable cutting length
4. Integrated infrared sensors for safe operation

Product Name: Automatic Pouch Case Forming Machine
Working Voltage: AC 220 V 50/60 Hz, single phase
Power: MAX.1kw
Forming Speed: 200 - 400  pcs / hour
Input Film Size: Maximum film width: 250 mm; Maximum diameter of the film roll: 300 mm
Die Set: Max die dimension: 400 mm L x 400 mm W
Punching Precision: ± 0.2 mm
Punching Depth: Max 6 mm
Punching Pressure: 10ton
Product Size: 1900 mm L x 650 mm W x 1800 mm H
Weight: 698kg
Film thickness: 0.10 - 0.20 mm
