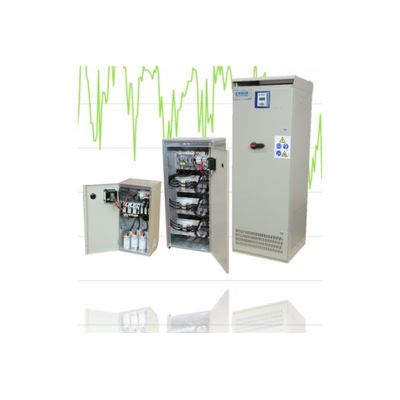

COMAR Condensatori - Model GE 230V Series - Automatic Power Factor Correction Equipment
GE 230V series is particularly suitable for three-phase networks with low harmonic distortion in current. These equipment guarantee an accurate power factor correction, thanks to a multistep design that effectively divides the power. In addition, on the G6E cabinet, all the capacitors banks are assembled on racks, easily removable from the front of the panel, for simple management and maintenance.
Most popular related searches
power factor correction equipment
automatic power factor correction
power factor correction
power factor
capacitor bank
overvoltage
voltage data
PERFORMANCE DATA
- Rated voltage 230 Vac (others on request)
- Rated frequency 50 Hz (60 Hz on request)
- Insulation voltage 690 Vac
- Auxiliary voltage 230 Vac (110 Vac on request)
- Overvoltage 1,1 Un (rated voltage)
- Temperature range -5 / +40 °C
- Impulse withstand
- 6 kV (G3E, G4E);
- 8 kV (G4RM, G6E)
HARMONIC CONTENT (in the absence of resonance)
- THD(I)max. = 15% on the network
- THD(Ic)max. = 50% on the capacitors
