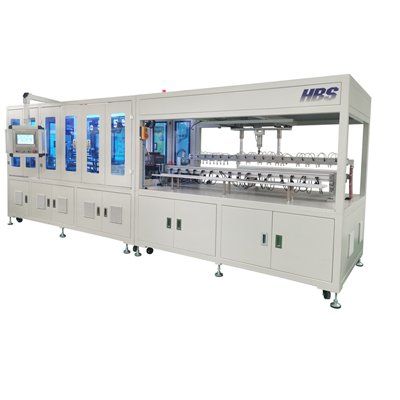

Model HBS-SP1800B - Automatic Solar Cell Tabber Stringer
166mm 182mm 210mm 5BB 6BB 9BB 10BB 12BB 13BB MBB Solar Cells Automatic Tabber Stringer. Tabber stringer is to weld the solar cells one by one through copper ribbon, and the cells are connected in series to form a string, the speed is 3400-3600PCS/hour or 6000cells/hour.
Most popular related searches
|
Net capacity
|
1250-1400 cells/hour |
| Cell size | 166mm 182mm 210mm (Half and Full Cell) 30-210*210mm |
| Cell thickness | 160um~300um |
| Busbar | 5BB 6BB 9BB 10BB 12BB 13BB changeover time 0.5H(feature) |
| Ribbon width | 0.6mm-1.5mm |
| Busbar thickness | 0.15-0.21mm |
| Ribbon position | Less than 0.1mm shift |
| Flux coating | Sunk auto coating flux |
| Soldering method | Infrared heating |
| Breakage rate | ≤0.1%(A Grade Solar Cell) |
| String length | 2100mm(2-12pcs) |
| Length tolerance | ±0.5mm |
| Straightness tolerance | ±0.5mm |
| Cell gap | 0.8-30mm(adjustable) |
| Cell position | Mechanic and CCD Position |
| Cell string transmission | Teflon transmitation belt, driven by servo motor |
| Cell defect detection type | crack/cold welding/cell reveral /surface stain by Eye Visual |
| Layup method | Automatic layup/manual layup |
| HMI | Integrated touch screen IPC with cantilever operation box and English/Chinese interface |
| Uptime | ≥95% |
| Electric system | PLC plus servo system |
| Power | 50-60Hz/AC380V / 3 phase 5 lines |
| CDA pressure | 06-0.8MPa |
| CDA consumption | 500 liters / min |
| Dimension | 5000*1390*2050mm(L*W*H) |
| Weight | 2100kg |
