Bernini Design - Model Be242 - Automatic Transfer Switch (ATS) Controller
The Be242 Automatic Transfer Switch (ATS) Controller is engineered to efficiently manage the transition of electrical loads between the mains and a generator, offering both manual and automatic control capabilities. The controller features a compact design consisting of a relay board and a user interface that can be mounted effortlessly on the door of an ATS panel with minimal modifications. The Be242 enhances versatility with its configurable relay and digital input options, and supports 3-phase 600V input levels for both mains and generator. Its robust design accommodates single and three-phase configurations, making it suitable for various electrical systems up to 1000kVA. The installation involves connecting the generator and engine circuits directly to the relay interface, bypassing complex rear panel wiring. Engineered with user-friendly operation modes including OFF, MANUAL, AUTO, and TEST, the ATS controller enables streamlined setup and reliable operation under diverse conditions. Adhering to relevant safety and operational standards, the Be242 is also equipped with a 4-digit display and LED indicators for comprehensive monitoring and adjustment of over 60 programmable settings.It is an electronic module committed to controlling the transfer of a LOAD from Mains to Generator and vice versa. The ATS controller automatically or manually manages and drives the connection assignment of the LOAD to MAINS or GENERATOR.

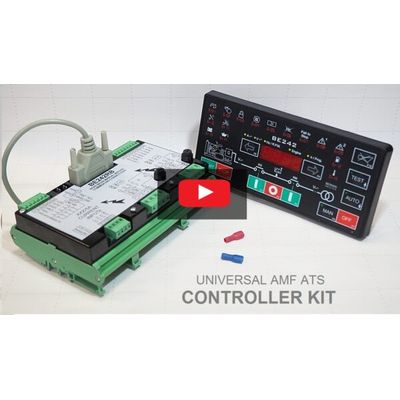

A traditional ATS controller needs as many meters of cables, many connections and accessories. The Be242 ATS controller is made of two parts. You will change the way to make an ATS panel. On the backplane, you install the ATS controller relay board. It will be easy to connect any kind of engine. You will benefit from the following features
FUEL SOLENOID RELAY
STOP SOLENOID RELAY
START SOLENOID RELAY
2 CONFIGURABLE RELAYS
6 CONFIGURABLE DIGITAL INPUTS
3-PHASE 600V INPUT GENERATOR
3-PHASE 600V INPUT MAINS
8Amp KM DRIVE RELAY
8Amp KM DRIVE RELAY
3X5Amp CT INPUTS
2XFUSES FOR THE COILS
BELT ALTERNATOR I/O MONITOR
We design state-of-the-art ATS CONTROLLERS so you can make professional products. By installing the ATS controller on the front of the cabinet, you must cut out a round hole and 4 small holes. This is 10 minutes job. This ATS controller contains all the electronic circuits you need.
