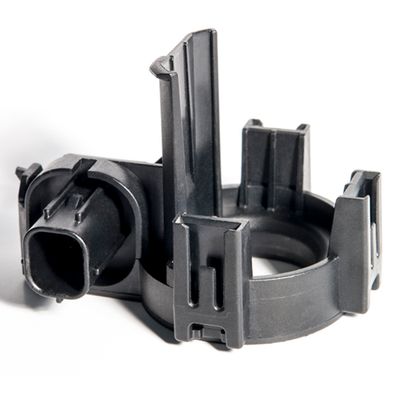

LEM - Model HABT 100-V/SP20 - Automotive Current Transducer

Series
HABT

Measurement
Current

Nominal Value
100 A

Measuring Range
100 A

Second. Nominal Signal
Voltage

Second. Nominal Signal Value
Instantaneous 2.5 +/- 2 V

Primary Signal
AC + DC

Supply Voltage
External DC Unipolar

Supply Voltage Range
5 - 5 V

Accuracy
3.75 %

Op. Temperature
-30 °C / 90 °C

Technology
Open loop Hall effect

Mounting
On primary fastening

Applications
Automotive Battery Management
