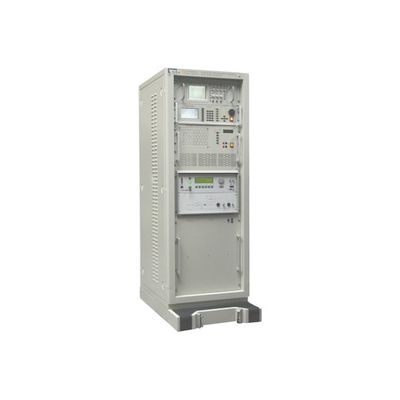

SPS - Automotive Supply Simulation Systems
From Automotive & Avionic Test and Simulation Systems
Test Pulses And Voltage Variations According To Iso Standards And Manufacturer Specifications. Test Pulses And Voltage Variations According To Iso Standards And Manufacturer Specifications. The modular simulation system ist very well designed to perform immunity tests with a pulse characteristic and with line coupling injection according to the following standards: ISO 7637, ISO 16750-2, ISO 21848, as well as manufacturer specific standards from Audi, BMW, Daimler Chrysler, Fiat, Ford, GMW, Mitsubishi, Nissan, PSA, Renault, SAE, VW.
-
Most popular related searches
The system contains a 2/4 quadrant amplifier as a ...
The system contains a 2/4 quadrant amplifier as a source and a test pulse generator including a software package SPS Automotive for testing and reporting. As additional components a high voltage tester and a relay coupling field are available. The OPD is an add-on for the protection of prototype EUT's.
Operating ranges are:
- U: 0…70V
- I: 0…1000A
- P: 0…30kW
- for 12V, 24V and 48V systems
