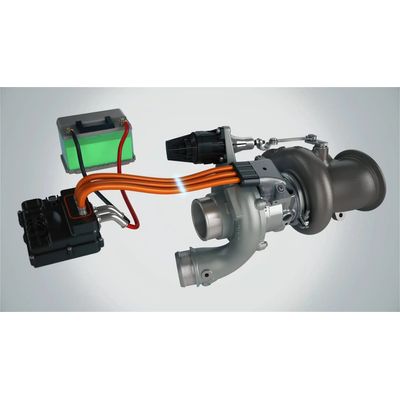

Garrett is pioneering E-Turbo technology to deliver superior performance, fuel economy, and emissions, by integrating state-of-the-art, ultra-high-speed electric motors and power electronics into its turbocharger product families. Garrett’s Electrified Turbos (E-Turbos) show exciting potential and equal applicability in both light & commercial vehicles, in all fuels such as gasoline, diesel and natural gas (CNG).

Most popular related searches

energy management

power engineering

energy efficiency management

power electronic

electrical system

energy recovery

energy efficiency

E-Turbo | A Key Technology for EU7

Garrett has created multiple E-Turbo demonstration vehicles that are successful representations of how an electrified boosting solution can increase engine power and torque while allowing the engine to operate at Lambda 1, providing energy recuperation to the vehicle’s electrical system.

Electrifying a turbocharger removes the constraint of needing a small turbine with excellent efficiency to drive the compressor at low flow rates. Instead, it allows us to right-size the turbine for Lambda 1 rated power.

Lambda 1 (or stoichiometric air/fuel ratio) is a key part of future Legislation.

If you are interested to learn more about Garrett electric boosting technology, download the E-Turbo whitepaper.

Strong industry macros indicate that all forms of hybridization set to grow fast (MHEV, HEV, PHEV)

The technologies will be used to meet regional, national, and local fuel economy and air quality targets

e.g. Europe
CO₂ -15% by 2025, -37,5% by 2030 (vs 2020)
RDE – City, Extra Urban & Highway
City Access – Tolls & Parking Charges
Gasoline – Particulates & Lambda 1
Diesel – NOx & NH3

Powertrains must be hybridized to meet the fuel economy and emission targets of EU7

E-Turbo provides an integrated, compact and balanced solution that delivers the additional functionality of Energy Recuperation (Efficient energy Management / Positive effect on state of charge SOC). Any penalty in inertia can, therefore, be more than compensated for by an electric motor and the addition of a wide-range Compressor to improve low-end response and extend high-end performance simultaneously.

If you are interested to learn more about Garrett electric boosting technology, download the E-Turbo whitepaper.

If you are interested to learn more about Garrett electric boosting technology, watch this webinar to understand how E-Turbo enables more efficiency and better performance.

EU7 Mainstream Concept

LAMBDA 1Full Map @ 980°C
ENGINE PARAMETERS (POWER)16% Power
ENGINE PARAMETERS (TORQUE)10,5% Torque
TRANSIENT4x Torque Gradient at 1500 rpm
TORQUE CONSISTENCYacross Speed Range
ENERGY MANAGEMENT> 60% Kinetic energy recovery in a Tip Out (Current, Potential >100%)
RECUPERATION POTENTIAL(under investigation)
CO2 POTENTIAL(under investigation)
