Maha - Model LMS 20.0 VP 425017 - Axle Play Tester
FromMaha USA L.L.C.

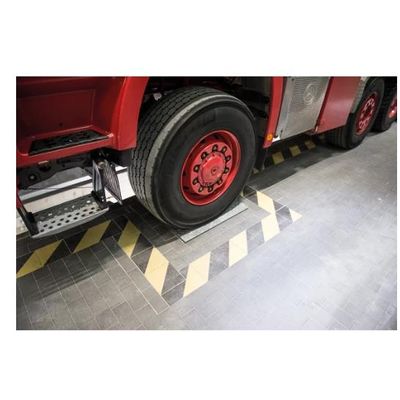

The axle play tester LMS 20.0 is intended for the reliable determination of defects and wear on steering parts, wheel bearings, shock absorbers and suspension by lateral and longitudinal movement of the test plates in opposite directions. The built-in hydraulic drive ensures a powerful and smooth movement of the test plates. An automatic mode as well as other different operating modes ensure the uncomplicated operability of the LMS 20.0.
Most popular related searches
Description:
- Rapid determination of defects and wear and tear on steering parts, wheel bearings, spring system and suspension
- Powerful and even movement thanks to hydraulic drive
- Low-noise oil-submerged hydraulic unit
- Slide bearings and particularly robust chrome-plated circular guides
- Extremely robust and low-maintenance design with optimum service life
- Counter-set cross and longitudinal movement of the test plates
- One-hand operation without lifting the vehicle
- Wireless radio inspection light with LED for performing and controlling the test plate movements
- Different operating modes including automatic mode
- Compliant with directive 2014/45/EU
- Optional: additional different test plate movements
- Optional: aluminium cable inspection light
Scope of delivery:
- 2 pieces test plates
- Electrical control box
- Hydraulic power unit
- Radio inspection light with charger and power supply unit
- Operating manual
-EC Declaration of Conformity CE
- Max. axle load: 20000 kg
- Max. wheel load: 10000 kg
- Test plate movement: 104mm
- Test plate speed: 50 mm/s
- Dimensions of test plate (L x W x H): 740 x 740 x 10 mm
- Installation depth: 260 mm
- Max. thrust per side: 30 kN
- Drive power: 2.5 kW
- Operating pressure: 120 bar
- Power supply: 3/N/PE 400 V 50 Hz
- Fuse gG: 16 A
- Hydraulic oil volume (not included): 25 l
