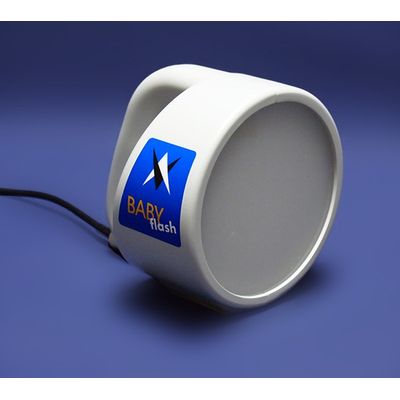

BABYflashModel E130 -Visual Stimulator

SHARE

The BABYflash E130 is a visual stimulator for ERG- or Flash-VEP - examinations. For ERG the intensities can be adjusted corresponding to the ISCEV standard for flash light and background light. The stimulus area has a diameter of 12 cm, must be held therefore not direct on the eye, an essential advantage in investigations of children. In addition to the white standard light the system offers also the possibility to stimulate with the colours red and blue.  All parameters are adjusted automatically over the selected investigation program.

Most popular related searches

White: Flash and Backlight

  • Standard Flash:  3,0 cds/m²
  • Range:  –40 dB to +10 dB in steps of  5 dB
  • Background, values: 30 cd/m²;  100 cd/m² and 450 cd/m²
  • ON-OFF Response white flash time from 100 ms to 500 ms in steps of 50 ms

Color: Blue 470 nm + Red 635 nm

  • Standard Flash:  3,0 cds/m²
  • Range:  from –40 dB to +10 dB in steps of 5 dB
  • Background, values: 5cd/m²; 10 cd/m²; 20 cd/m² and 30 cd/m²
