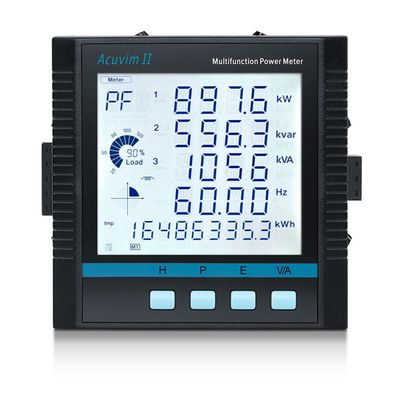

Accuenergy - Model Acuvim IIBN -BACnet Power and Energy Meter

• Revenue Grade: ANSI C12.20 Class 0.2 & IEC 62053-22 class 0.2s
• Built-in BACnet-IP communication module ensures easy integration into building automation systems
• BTL Listed for Smart Sensor (B-SS) and BACnet Smart Actuator (B-SA)
• Available compatibility with multiple CT output options including 5A, mA, RCT (Rogowski), or 333mV
• Secure, mobile-friendly web server provides real-time meter reading and configuration
• Three form factors: Panel mount meter with digital display, DIN rail mount transducer, or built into an AcuPanel pre-wired enclosure
• 5 year warranty

Why is Energy Metering Important in Building Automation and Control Applications?
By providing detailed energy consumption data, energy meters play a critical role in building automation systems, drive real-time energy management decisions, increase system efficiency, and building performance. Building automation and control applications require specialized energy meters capable of communication via an industrial protocol, like BACnet, which is frequently found in BAC settings. An open protocol, BACnet interconnects meters, sensors, controllers, and other building equipment to a central server or workstation. By implementing a single, standardized protocol, it is possible for devices from multiple manufacturers to communicate.

Customize Your Meter Configuration
The Acuvim IIBN is an advanced power and energy meter specifically designed to monitor and collect real-time revenue-grade electrical data within building automation and control environments. The meter provides detailed data on multiple energy parameters and the built-in BACnet communications module provides straightforward integration into building systems.

Select an Acuvim IIBN Model
Includes a built-in BACnet communication module for building automation & control.
Choose a Form Factor
Configure as a Panel Mount meter with a digital display or as a DIN Rail Transducer.
Choose a Current Input Option
Choose a current input option for the Acuvim IIBN: 5A, mA, RCT (Rogowski), or 333mV.
Select a Power Supply
Two power supply options: P1 is for 100-415Vac (50/60Hz) and 100-300Vdc systems. P2 is compatible with a 20-60Vdc source.
Choose Optional Accessories
Customize your meter with a range of helpful accessories.
