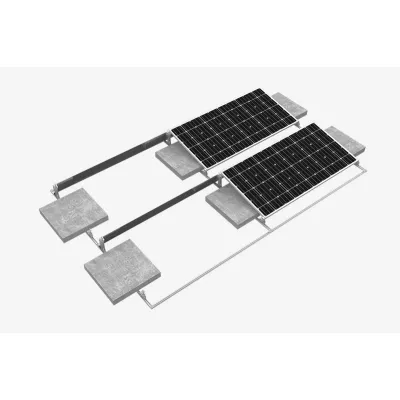

MRac - Ballasted Flat Roof Mounting System
The Ballasted Flat Roof Mounting System, branded as RMIPro, is designed for solar panel installations that require no roof penetration. It supports solar panels with 60 or 72 cells, as well as most other panels, making it highly versatile. The RMIPro system is constructed of high-strength aluminum alloy to ensure stability and withstand moderate wind pressures up to 44m/s. The unique matrix design of the system significantly improves its stability while reducing the ballast weight requirements. It can be flexibly installed using a concrete foundation or ballast plate, solving low load-bearing issues on roofs. Minimal installation accessories enhance the setup efficiency, while professional structural engineering optimizes space for transportation and packaging. The system is engineered to meet rigorous safety standards, making it a reliable solution for flat roof solar mounting.Ballasted Flat Roof Mounting System RMIPro does not require any roof penetration to mount solar panels. It is a PV mounting product that can be installed at multiple mounting angles and is suitable for installation in areas with moderate wind pressure of 44m/s. This flat roof ballasted mounting system is low cost and easy to install and is compatible with all standard solar panels with 60 or 72 cells, as well as most other panels.
Safety and strength of the system
High-strength aluminum alloy is used to ensure the overall stability and strength of the system. The mounting systems are developed with wind loads in mind, so they meet the highest safety standards.
Unique matrix design
The matrix design makes the whole system more stable, and together with the wind baffle, it greatly reduces the configuration ballast weight requirement and can be installed flexibly and effectively with concrete foundation or ballast plate, which solves the problem of low load bearing on the roof.
Reasonable structural design
Few system installation accessories improve installation efficiency. Professional structural design saves space for transportation and packaging.
Type: Flat roof
Bottom Support: Concrete foundation
Installation Angle: 0-30°
Wind Load: 40m/s
Snow Load: 1.6KN/㎡
Panel Framing: framed
Panel Orientation: horizontal
Design Standards: AS/NZS 1170, DIN 1055, JIS C8955:2017,
: International Building Code: IBC 2009,
: California Building Code: CBC 2010;
Bracket Material: AL6005-T5 (surface anodized)
Fastener Material: Zinc-nickel alloy & SUS304 & Hot-dip galvanized
Parts Material: AL6005-T5 (surface anodized)
Bracket Color: Natural or Customized
Warranty: 10 years
