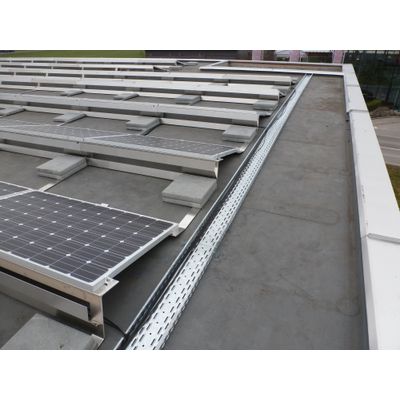

Aerocompact - Model S 5/10/15 -Ballasted Flat Roof System South Oriented
AEROCOMPACT S is the best way to optimize module performance on flat roofs. Fast installation, as well as stellar wind tunnel performance make this an ideal product for roofs where every module counts.
Most popular related searches
- 25 years product warranty
- Wind tunnel tested
- Incl. protection pads with aluminum coating
- TUV certified, conforms to UL 2703
- Patent pending
- Without roof penetration
- Optimum module ventilation
- Complimentary ballast calculation incl. roof layout
- Made in Europe
- Minimum order only 2 KWp
- 25 years product warranty
- Wind tunnel tested
- Incl. protection pads with aluminum coating
- TUV certified, conforms to UL 2703
- Patent pending
- Without roof penetration
- Optimum module ventilation
- Complimentary ballast calculation incl. roof layout
- Made in Europe
- Minimum order only 2 KWp
- Mounting Tilt:
- AEROCOMPACT S: 5°, 10°, 15°
- Inter-Row Spacing:
- AEROCOMPACT S 5 (30°): 7 inch (178 mm)
- AEROCOMPACT S 10 (25°): 15 inch (380 mm)
- AEROCOMPACT S 15 (25°): 22.5 inch(571 mm)
- Min. Array Size:
- AEROCOMPACT S: 2 rows with 3 modules / 3 rows with 2 modules
- Roof Edge Zone:
- Roof areas F and G can be used
- Module Dimensions:
- 37.4 – 41.3 inch x 61.1 – 81.9 inch (width – length)
- Max. Roof Slope:
- 5 Degree
- Roof Height:
- max. 25 m
- Windload:
- up to 2.4 KN/m2 (Design load as a load combination of dead load and wind suction)
- Snowload:
- AEROCOMPACT Standard up to 2.4 KN/m2
- AEROCOMPACT Alpin up to 4.4 KN/m2 (Design load as a load combination of dead load, wind and snow pressure)
- Module approval:
- Please request approved module list from the module manufacturer or Aerocompact
- Materials:
- Supporting materials made of aluminum EN AW 6060 T64, module-clamps aluminum EN AW 6063 T66, stainless steel screws, wind-deflector galvanized steel
- Shipping:
- approx. 40 KW per pallet, 700 KW per truckload
- System Requirement:
- Proof of static load capacity of the roof and the insulation needs to be provided by customer. General terms / warranty conditions and usage agreement apply.
