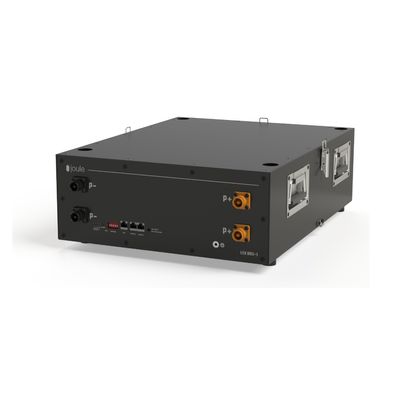

Joule - Model Li5k -Base Battery Station
Under the Inflation Reduction Act (2022), all energy storage products over 5 kWh qualify for a 30% Federal Tax Credit. The Li5k Base-S Battery Station is designed specifically for the needs of heavy-duty applications. Providing 5000 watt-hours of energy from long-lasting LFP cells, this station is designed to be paired with a 3rd-party inverter. With lower energy density and a wallet-friendly price per watt-hour, the Li5k Base makes a great solution for built-in applications like food trucks and home backup. NOTE: This product is NOT compatible with Joule Case 12-volt products.
Voltage, Nominal
51.2V
Operating Voltage
41.6 - 54.5V
Capacity
100Ah
Energy (Nominal)
5000Wh
Chemistry
LFP
Cycle Life to 70% initial capacity
5000
Maximum Discharge Rate
100A continuous; 120A for 10 seconds
Maximum Charge Rate
50A
BMS
Full suite of voltage, current and temperature protections
Smart system
Pack voltage, cell voltages, current, % remaining
Data bus
Two port RS485, daisy chain-able up to 15
Parallel capability
Yes
LED indicators
4 x LED SOC indicator; run, fault LEDs
Operating Temperature
-10°C to +60°C
Charging Temperature
-0°C to +50°C
Certifications
UL1973 (cell), ROHS, UN38.3, CE, TUV, UL
Weight
124 lbs
Dimensions
17.3 × 22.5 × 7.8 in
NO FUMES
Traditional generators produce toxic, harmful fumes that are bad for humans and the environment.
NO NOISE
Our batteries are silent—no shouting to have a conversation or being drowned out by the constant hum of a generator.
CHARGE
Expandable battery system designed to charge using renewable or on-grid sources.
STORE
The stackable design gives you the control to add more power based on your needs.
